    mirror backup to S3

    Scheduled Pinned Locked Moved Backup
    16 Posts 4 Posters 415 Views 3 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • robytR Offline
      robyt @acebmxer
      last edited by robyt

      @acebmxer [excuse for the poor english!]
      i've now this situation:
      1 backup job with two disables schedules, one full and one delta, to a nas
      1 mirror full backup to wasabi (S3)
      1 mirror incremental backup

      i've insert two sequences:
      one starting at sunday for full backup (the sequence is full backup and then full mirror)
      one every 3 hours with delta backup and then mirror incremental

      the job start at the correct hour but the mirror incremental send every time the same data size..
      backup to nas:

      dns_interno1 (ctx1.tosnet.it)
      Transfer data using NBD
          Clean VM directory
          cleanVm: incorrect backup size in metadata
          Start: 2025-06-24 16:00
          End: 2025-06-24 16:00
          Snapshot
          Start: 2025-06-24 16:00
          End: 2025-06-24 16:00
          Backup XEN OLD
              transfer
              Start: 2025-06-24 16:00
              End: 2025-06-24 16:01
              Duration: a few seconds
              Size: 132 MiB
              Speed: 11.86 MiB/s
          Start: 2025-06-24 16:00
          End: 2025-06-24 16:01
          Duration: a minute

      Start: 2025-06-24 16:00
      End: 2025-06-24 16:01
      Duration: a minute
      Type: delta

       dns_interno1 (ctx1.tosnet.it)
          Wasabi
              transfer
              Start: 2025-06-24 16:02
              End: 2025-06-24 16:15
              Duration: 13 minutes
              Size: 25.03 GiB
              Speed: 34.14 MiB/s
              transfer
              Start: 2025-06-24 16:15
              End: 2025-06-24 16:15
              Duration: a few seconds
              Size: 394 MiB
              Speed: 22.49 MiB/s
          Start: 2025-06-24 16:02
          End: 2025-06-24 16:17
          Duration: 15 minutes
          Wasabi
          Start: 2025-06-24 16:15
          End: 2025-06-24 16:17
          Duration: 2 minutes

      Start: 2025-06-24 16:02
      End: 2025-06-24 16:17
      Duration: 15 minutes


      the job send every time 25gb to wasabi, not the incremental data.

      A 1 Reply Last reply Reply Quote 0
      • A Offline
        acebmxer @robyt
        last edited by

        @robyt

        What i posted was just examples of how i have my backups configured. You dont have to call the backup jobs the same as mine. Maybe someone else with more experience can step in. Double check your schedules make sure you did set incorrect settings in one of the schedules/jobs.

        robytR 1 Reply Last reply Reply Quote 0
        • robytR Offline
          robyt @acebmxer
          last edited by

          @acebmxer of course, this is only a test.
          the problem is not the schedulng but why incremental send every time all data.

          1 Reply Last reply Reply Quote 0
          • florentF Offline
            florent Vates 🪐 XO Team
            last edited by

            @robyt said in mirror backup to S3:

            1 backup job with two disables schedules, one full and one delta, to a nas

            Hi robyt

            i the mirror settings : full mirror if when mirroring full backup ( called backup ) , as one file per VM
            The incremental mirror will take care on all the files created by a delta backup

            Can you show me what retention you have on both side ? you have more explanation on the syncrohnization algorithm here https://docs.xen-orchestra.com/mirror_backup , to be short a delta mirror can only be done if part of the disks chains are common to both remotes

            robytR 2 Replies Last reply Reply Quote 0
            • robytR Offline
              robyt @florent
              last edited by

              @florent hi, i've adjusted the retention parameters and i'm waiting for some days of backup/mirror for checking

              1 Reply Last reply Reply Quote 1
              • robytR Offline
                robyt @florent
                last edited by

                Hi @florent, i've clean backup data, add the correct retention and now
                it's fine
                i'm lowering nbd connection (from 4 to 1), the speed of "test backup con mirror" is too low

                florentF 1 Reply Last reply Reply Quote 0
                • florentF Offline
                  florent Vates 🪐 XO Team @robyt
                  last edited by

                  @robyt 2 is generally a sweet spot

                  robytR 1 Reply Last reply Reply Quote 0
                  • robytR Offline
                    robyt @florent
                    last edited by

                    @florent i've a little problem with backup to s3/wasabi..

                    for delta seems all ok:

                    {
                      "data": {
                        "mode": "delta",
                        "reportWhen": "failure"
                      },
                      "id": "1751914964818",
                      "jobId": "e4adc26c-8723-4388-a5df-c2a1663ed0f7",
                      "jobName": "Mirror wasabi delta",
                      "message": "backup",
                      "scheduleId": "62a5edce-88b8-4db9-982e-ad2f525c4eb9",
                      "start": 1751914964818,
                      "status": "success",
                      "infos": [
                        {
                          "data": {
                            "vms": [
                              "2771e7a0-2572-ca87-97cf-e174a1d35e6f",
                              "b89670f6-b785-7df0-3791-e5e41ec8ee08",
                              "cac6afed-5df8-0817-604c-a047a162093f"
                            ]
                          },
                          "message": "vms"
                        }
                      ],
                      "tasks": [
                        {
                          "data": {
                            "type": "VM",
                            "id": "b89670f6-b785-7df0-3791-e5e41ec8ee08"
                          },
                          "id": "1751914968373",
                          "message": "backup VM",
                          "start": 1751914968373,
                          "status": "success",
                          "tasks": [
                            {
                              "id": "1751914968742",
                              "message": "clean-vm",
                              "start": 1751914968742,
                              "status": "success",
                              "end": 1751914979708,
                              "result": {
                                "merge": false
                              }
                            },
                            {
                              "data": {
                                "id": "ea222c7a-b242-4605-83f0-fdcc9865eb88",
                                "type": "remote"
                              },
                              "id": "1751914984503",
                              "message": "export",
                              "start": 1751914984503,
                              "status": "success",
                              "tasks": [
                                {
                                  "id": "1751914984667",
                                  "message": "transfer",
                                  "start": 1751914984667,
                                  "status": "success",
                                  "end": 1751914992365,
                                  "result": {
                                    "size": 125829120
                                  }
                                },
                                {
                                  "id": "1751914995521",
                                  "message": "clean-vm",
                                  "start": 1751914995521,
                                  "status": "success",
                                  "tasks": [
                                    {
                                      "id": "1751915004208",
                                      "message": "merge",
                                      "start": 1751915004208,
                                      "status": "success",
                                      "end": 1751915018911
                                    }
                                  ],
                                  "end": 1751915020075,
                                  "result": {
                                    "merge": true
                                  }
                                }
                              ],
                              "end": 1751915020077
                            }
                          ],
                          "end": 1751915020077
                        },
                        {
                          "data": {
                            "type": "VM",
                            "id": "2771e7a0-2572-ca87-97cf-e174a1d35e6f"
                          },
                          "id": "1751914968380",
                          "message": "backup VM",
                          "start": 1751914968380,
                          "status": "success",
                          "tasks": [
                            {
                              "id": "1751914968903",
                              "message": "clean-vm",
                              "start": 1751914968903,
                              "status": "success",
                              "end": 1751914979840,
                              "result": {
                                "merge": false
                              }
                            },
                            {
                              "data": {
                                "id": "ea222c7a-b242-4605-83f0-fdcc9865eb88",
                                "type": "remote"
                              },
                              "id": "1751914986808",
                              "message": "export",
                              "start": 1751914986808,
                              "status": "success",
                              "tasks": [
                                {
                                  "id": "1751914987416",
                                  "message": "transfer",
                                  "start": 1751914987416,
                                  "status": "success",
                                  "end": 1751914993152,
                                  "result": {
                                    "size": 119537664
                                  }
                                },
                                {
                                  "id": "1751914996024",
                                  "message": "clean-vm",
                                  "start": 1751914996024,
                                  "status": "success",
                                  "tasks": [
                                    {
                                      "id": "1751915005023",
                                      "message": "merge",
                                      "start": 1751915005023,
                                      "status": "success",
                                      "end": 1751915035567
                                    }
                                  ],
                                  "end": 1751915039414,
                                  "result": {
                                    "merge": true
                                  }
                                }
                              ],
                              "end": 1751915039414
                            }
                          ],
                          "end": 1751915039415
                        },
                        {
                          "data": {
                            "type": "VM",
                            "id": "cac6afed-5df8-0817-604c-a047a162093f"
                          },
                          "id": "1751915020089",
                          "message": "backup VM",
                          "start": 1751915020089,
                          "status": "success",
                          "tasks": [
                            {
                              "id": "1751915020443",
                              "message": "clean-vm",
                              "start": 1751915020443,
                              "status": "success",
                              "end": 1751915030194,
                              "result": {
                                "merge": false
                              }
                            },
                            {
                              "data": {
                                "id": "ea222c7a-b242-4605-83f0-fdcc9865eb88",
                                "type": "remote"
                              },
                              "id": "1751915034962",
                              "message": "export",
                              "start": 1751915034962,
                              "status": "success",
                              "tasks": [
                                {
                                  "id": "1751915035142",
                                  "message": "transfer",
                                  "start": 1751915035142,
                                  "status": "success",
                                  "end": 1751915052723,
                                  "result": {
                                    "size": 719323136
                                  }
                                },
                                {
                                  "id": "1751915056146",
                                  "message": "clean-vm",
                                  "start": 1751915056146,
                                  "status": "success",
                                  "tasks": [
                                    {
                                      "id": "1751915064681",
                                      "message": "merge",
                                      "start": 1751915064681,
                                      "status": "success",
                                      "end": 1751915116508
                                    }
                                  ],
                                  "end": 1751915117838,
                                  "result": {
                                    "merge": true
                                  }
                                }
                              ],
                              "end": 1751915117839
                            }
                          ],
                          "end": 1751915117839
                        }
                      ],
                      "end": 1751915117839
                    }


                    For full i'm not sure:

                       {
                          "data": {
                            "mode": "full",
                            "reportWhen": "always"
                          },
                          "id": "1751757492933",
                          "jobId": "35c78a31-67c5-47ba-9988-9c4cb404ed8e",
                          "jobName": "Mirror wasabi full",
                          "message": "backup",
                          "scheduleId": "476b863d-a651-42e5-9bb3-db830dbdac7c",
                          "start": 1751757492933,
                          "status": "success",
                          "infos": [
                            {
                              "data": {
                                "vms": [
                                  "2771e7a0-2572-ca87-97cf-e174a1d35e6f",
                                  "b89670f6-b785-7df0-3791-e5e41ec8ee08",
                                  "cac6afed-5df8-0817-604c-a047a162093f"
                                ]
                              },
                              "message": "vms"
                            }
                          ],
                          "end": 1751757496499
                        }

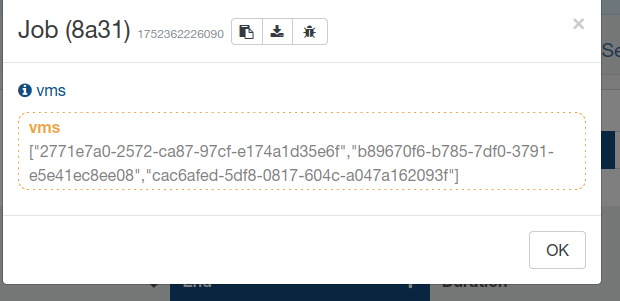

                    XOA send to me the email with this report

                    Job ID: 35c78a31-67c5-47ba-9988-9c4cb404ed8e
                    Run ID: 1751757492933
                    Mode: full
                    Start time: Sunday, July 6th 2025, 1:18:12 am
                    End time: Sunday, July 6th 2025, 1:18:16 am
                    Duration: a few seconds


                    four second for 203 gb?

                    robytR 1 Reply Last reply Reply Quote 0
                    • robytR Offline
                      robyt @robyt
                      last edited by

                      any ideas?

                      florentF 1 Reply Last reply Reply Quote 0
                      • florentF Offline
                        florent Vates 🪐 XO Team @robyt
                        last edited by

                        @robyt are you using full backus ( called "backup" ) on the source ?
                        because incremental mirror will transfer all the backups generated by a "delta backup" whereas it's the first transfer or the following delta

                        (our terminology can be confusing for now)

                        1 Reply Last reply Reply Quote 0
