Intel x710-t2l Problems

[olivierlambert]

Hi!

What do you mean by "unresponsive"?

[wlp94114]

@olivierlambert

Good morning!

I've created a Debian 13 vm with x710-T2l as the network device.

When I try to install Debian 13, the installer fails when trying to acquire a DHCP address.

My original plan was/is to build a pfSense router/firewall using the x710. The installer configures the interfaces (WAN/LAN) but fails when trying to access the internet.

The XCP-ng v8.3 host is using the alt i40 driver.

[olivierlambert]

And if you add a fixed address, does it work?

[wlp94114]

@olivierlambert

I ran through the install with a fixed address without success.

I've attached some screenshots for your perusal.

[olivierlambert]

Is your card having a recent firmware? I don't know why a passthrough NIC wouldn't work

[splastunov]

try to disable tx/rx offload from xcp-ng side.

1. get VIF list of your VM

xe vm-vif-list uuid=VMUUID

2. disable features for each VIF

xe vif-param-set uuid=VIFUUID other-config:ethtool-tx="off"
xe vif-param-set uuid=VIFUUID other-config:ethtool-rx="off"

3. reboot VM

[wlp94114]

@olivierlambert
Yes, there has been a recent firmware update.

Here is the info on the x710-T2l:
[08:19 xandria ~]# ethtool -i eth9,
driver: i40e
version: 2.26.8
firmware-version: 9.54 0x8000fb5f 1.3800.0
expansion-rom-version:
bus-info: 0000:41:00.1
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: yes
supports-priv-flags: yes

The x710-DA4, which is assignable to a vm via Xen Orchestra but not assignable via pci passthrough, is on a much older firmware rev:
[08:24 xandria ~]# ethtool -i eth4
driver: i40e
version: 2.26.8
firmware-version: 6.01 0x80003484 1.1747.0
expansion-rom-version:
bus-info: 0000:04:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: yes
supports-priv-flags: yes

[wlp94114]

@splastunov said in Intel x710-t2l Problems:

xe vif-param-set uuid=VIFUUID other-config:ethtool-tx="off"
xe vif-param-set uuid=VIFUUID other-config:ethtool-rx="off"

Hi!

Thanks for your input. I set the vif parameters as suggested and am still unable to ping the gateway.

[wlp94114]

@olivierlambert

I realize this is an older topic and I'd like to share you with what I have learned.

The x710 series has a reputation for being picky about driver and nvram versions.

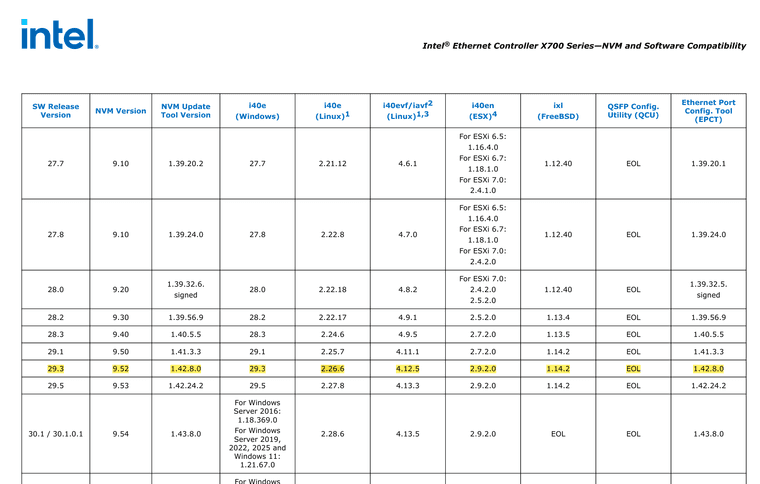

According to the "332191_Intel Ethernet Controller X710-XXV710-XL710 Feature Summary_Rev5_12" publication, page 34, the closest match for XCP-ng's intel-i40e-alt.x86_64 (version: 2.26.8) is nvram 9.52.

I flashed both the x710-T2l and the X710-DA4 to 9.52 and have success passing the x710-DA4 through to a vm.

I haven't tried to do a passthrough with the x710-T2l; I've got PfSense running using XCP-ng's vlan feature and some tuneables in PfSense and am reluctant to rock the boat.

I'm including a snapshot of page 34 of the Intel pub for your review.

Best regards!

[olivierlambert]

Thank you very much for sharing your findings

Adding @Team-Documentation-Knowledge-Management and @Team-OS-Platform-Release to check what's next on our side

[yann]

Adding this to our topics to discuss

[yann]

@wlp94114 said in Intel x710-t2l Problems:

The x710 series has a reputation for being picky about driver and nvram versions.

Out of curiosity, is there anything reported by the linux driver that would allow make the situation obvious?

[wlp94114]

@yann Hi yann,

Sorry for the radio silence. Have been away.

How would I check for that?

[yann]

@wlp94114 for example, did you get any warnings in the kernel logs about the firmware version mismatch?
