    PCI device doesn't show in XO or xe pci-list

    Scheduled Pinned Locked Moved Compute
    26 Posts 6 Posters 649 Views 6 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • marcoiM Offline
      marcoi @olivierlambert
      last edited by

      @olivierlambert thanks for the update.
      and just to confirm, if a device is not showing up in xe list with uuid, there is no way to pass it to a VM correct?

      1 Reply Last reply Reply Quote 0
      • olivierlambertO Offline
        olivierlambert Vates 🪐 Co-Founder CEO
        last edited by

        No, you can pass it anyway, it's just not doable via XO. But the CLI method should work 🙂

        marcoiM 1 Reply Last reply Reply Quote 0
        • marcoiM Offline
          marcoi @olivierlambert
          last edited by

          @olivierlambert to confirm the steps
          i can skip this step since it isnt showing up anyways

          • xe pci-disable-dom0-access uuid=<pci uuid>

          then use

          • xe vm-param-set other-config:pci=0/0000:04:01.0 uuid=<vm uuid> to add it to vm
          1 Reply Last reply Reply Quote 0
          • olivierlambertO Offline
            olivierlambert Vates 🪐 Co-Founder CEO
            last edited by olivierlambert

            That might work indeed. If it doesn't, you'll have to go via the old method:

            /opt/xensource/libexec/xen-cmdline --set-dom0 "xen-pciback.hide=(0000:04:01.0)"


            Please let us know 🙂 (this way we could update the doc)

            marcoiM 1 Reply Last reply Reply Quote 0
            • marcoiM Offline
              marcoi @olivierlambert
              last edited by

              @olivierlambert

              xe vm-param-set other-config:pci=0/0000:c6:00.0 uuid=45d0f537-9076-b395-1fbd-850d2cc0cf68

              This command worked. I was able to pass through the usb and also pcie devices i can get to using XO.


              windows host showing usb drive plugged into usb3 card and graphics card.


              1 Reply Last reply Reply Quote 0
              • olivierlambertO Offline
                olivierlambert Vates 🪐 Co-Founder CEO
                last edited by

                Perfect! It's just a matter of stuff hidden for some reasons, at least it doesn't cause any problem, which is what matters 🙂

                1 Reply Last reply Reply Quote 1
                • C Offline
                  chicagomed @andSmv
                  last edited by

                  @andSmv

                  From LSPCI:

                  0a:00.0 Audio device: Intel Corporation DG2 Audio Controller
                  0b:00.0 VGA compatible controller: Intel Corporation DG2 [Arc A310] (rev 05)


                  With xl pci-assignable-list :

                  0000:01:00.6
                  0000:01:00.4
                  0000:0b:00.0
                  0000:01:00.0
                  0000:01:00.3



                  Here you go...hope this helps!

                  1 Reply Last reply Reply Quote 1
                  • P Offline
                    Pyroteq @andriy.sultanov
                    last edited by

                    @andriy.sultanov

                    09:00.0 "Multimedia video controller [0400]" "Conexant Systems, Inc. [14f1]" "CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb [8880]" -r04 "Hauppauge computer works Inc. [0070]" "Device [6a28]"

                    0a:00.0 "Multimedia video controller [0400]" "Conexant Systems, Inc. [14f1]" "CX23887/8 PCIe Broadcast Audio and Video Decoder with 3D Comb [8880]" -r04 "Hauppauge computer works Inc. [0070]" "Device [6b28]"

                    1 Reply Last reply Reply Quote 1
                    • marcoiM Offline
                      marcoi
                      last edited by

                      is there anyway to block igpu from being used by xcp-ng during boot? I have it setup for pass through but it fails under the VM. I think it because xcp-ng still displaying the console screen and does not want to give it up.

                      marcoiM 1 Reply Last reply Reply Quote 0
                      • marcoiM Offline
                        marcoi @marcoi
                        last edited by marcoi

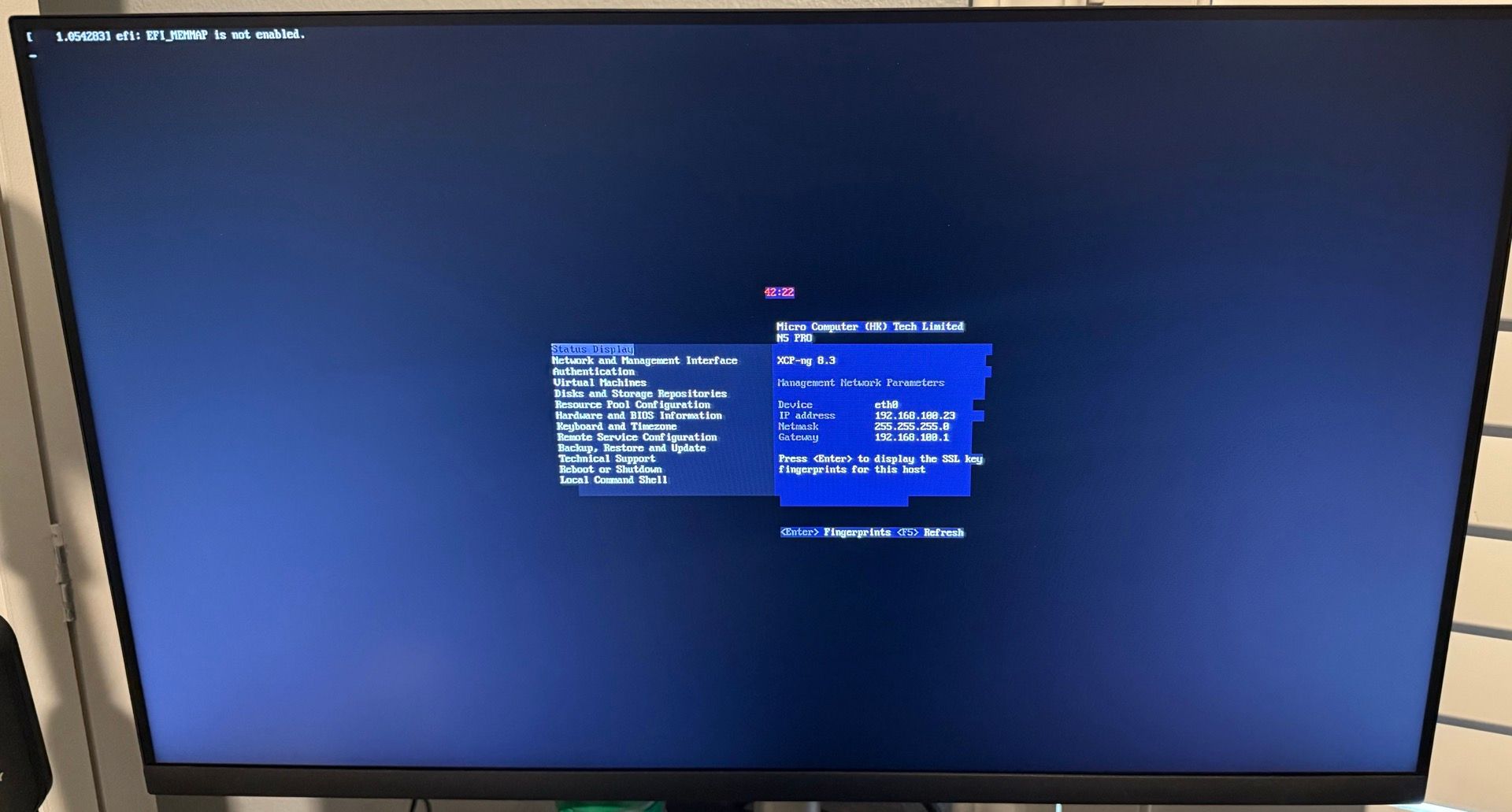

                        so it seems like when i make the igpu pass through, i see the starting lines of xcp-ng but it never gets to the console screen. which is what i expect.
                        When I add the pcie devices (igpu/hdmi audio) to a vm and start it up, I get and update to the screen and it shows a red number counting which is part of the console.
                        So it seems that when the VM re-initializes the igpu, dom/xcp retakes it over.
                        I confirmed that by using the keyboard to move around and it reshowing the console and filling the missing details as i move around.
                        So why is the dom/xcp retaking the video device over again when it should be blocked from accessing it?


                        1 Reply Last reply Reply Quote 0
