Job canceled to protect the VDI chain
-

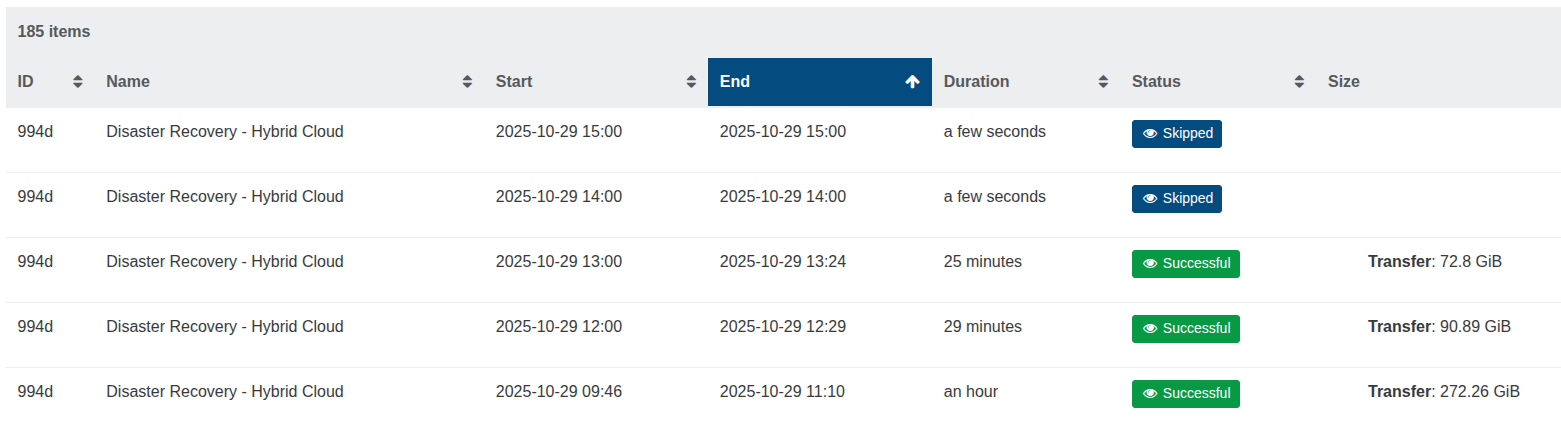

Yesterday our backup job started failing for all VMs with the message:
"Job canceled to protect the VDI chain"
I have checked the docs regarding VDI chain protection:
https://docs.xen-orchestra.com/backup_troubleshooting#vdi-chain-protectionThe xcp-ng logs do not show any errors:
I am using TrueNAS as shared storage.
-
Hi,
Maybe you simply have coalesce still running on your storage.
-

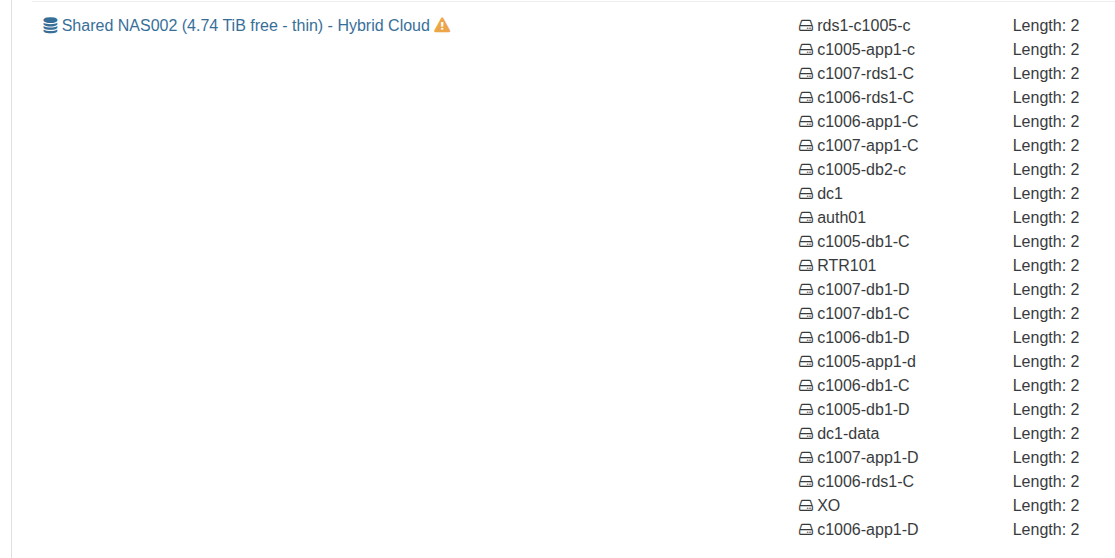

I think you are correct. When I checked the Health it showed 46 to coalesce and then number started dropping down to zero. Now the backups appear to be running again
I have never seen this before and I am curious as to why it appeared yesterday.
My fear was storage corruption, as with shared storage it would impact all VMs. I checked TrueNAS and everything appears to be be healthy.
-
Hard to tell, but instead of adding even more pressure, XO automatically skipped until your chain coalesced correctly.
-
Is it XO or xcp-ng that manages the coalescing? Can more resources be applied to assist?
-
I spoke too soon. The backups started working however the problem has returned.
I do see 44 items waiting to coalesce. This is new as these would coalesce faster previously without causing this issue.
Is there a reason the coalesce is taking longer now or is there a way I can add resources to speed up the process?
-
I have the following entry in the logs, over and over. Not sure if this is a problem:
Oct 29 15:25:08 HST106 SMGC: [1009624] Found 1 orphaned vdis Oct 29 15:25:08 HST106 SM: [1009624] lock: tried lock /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/sr, acquired: True (exists: True) Oct 29 15:25:08 HST106 SMGC: [1009624] Found 1 VDIs for deletion: Oct 29 15:25:08 HST106 SMGC: [1009624] *d4a17b38(100.000G/21.652G?) Oct 29 15:25:08 HST106 SMGC: [1009624] Deleting unlinked VDI *d4a17b38(100.000G/21.652G?) Oct 29 15:25:08 HST106 SMGC: [1009624] Checking with slave: ('OpaqueRef:16797af5-c5d1-08d5-0e26-e17149c2807b', 'nfs-on-slave', 'check', {'path': '/var/run/sr-mount/be743b1c-7803-1943-0a70-baf5fcbfeaaf/d4a17b38-5a3c-438a-b394-fcbb64784499.vhd'}) Oct 29 15:25:08 HST106 SM: [1009624] lock: released /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/sr Oct 29 15:25:08 HST106 SM: [1009624] lock: released /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/running Oct 29 15:25:08 HST106 SMGC: [1009624] GC process exiting, no work left Oct 29 15:25:08 HST106 SM: [1009624] lock: released /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/gc_active Oct 29 15:25:08 HST106 SMGC: [1009624] In cleanup Oct 29 15:25:08 HST106 SMGC: [1009624] SR be74 ('Shared NAS002') (166 VDIs in 27 VHD trees): no changes Oct 29 15:25:08 HST106 SM: [1009624] lock: closed /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/running Oct 29 15:25:08 HST106 SM: [1009624] lock: closed /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/gc_active Oct 29 15:25:08 HST106 SM: [1009624] lock: closed /var/lock/sm/be743b1c-7803-1943-0a70-baf5fcbfeaaf/sr -
How long roughly before coalesce is done? Coalesce is a storage task directly done by XCP-ng, XO is just witnessing it.
It's normal to have disks to coalesce after snapshot removal.
-
@olivierlambert if its at XCP level, is there a ratio where storage access performance should be especially monitored ?
i guess that 500 VMs desnapshoted on 1 host is managed differently than 500VMs on 50 hosts.
but if all hosts are on same shared storage... performance constraint ?
-
Coalescing is indeed generating some IOPS, latency is in general the most visible impact on it. However, it's managed per storage, regardless the number of VDIs, they are coalesced one by one.
-
@olivierlambert sor for high number of VMs, there is a point in time where you should be aware of not doing DR too frequently to let coalesce proceed.
50VMs in a DR job, every hour, if coalesce takes 2min by VM, it didnt finish when the next DR is starting ?i'm looking for the edge case
-
This is entirely dependent of your setup, there's no universal rule. But thanks to XO skipping the job, you can adapt your configuration to reduce the number of times it happens.
