I have, what is hopefully a final update to this issue(s).
we upgraded to xoa version .99 a few weeks ago and the problem has now gone away. we suspect that some changes were made for timeouts in xoa that have resolved this , and a few other related problems.
I got this figured out...
the xcp-ng-updated packages for netdata-ui DO NOT work with xcp-ng, as per my oringial post.
netdata is getting upted by normal xcp-ng updates
this new version does not work , VM's no longer listed.
steps to remove and put on orig version
yum remove netdata-ui -y
yum remove netdata -y
#you have todo this as well or old version wont install
#yum leave files in /usr/share/netdata/ that blokcs installing 1.19
rpm -e netdata-data-1.44.3-1.2.xcpng8.2.noarch
rpm -e netdata-conf-1.44.3-1.2.xcpng8.2.noarch
yum install netdata-ui-1.19.0
#run next line or manualy type it in, you do you
echo "exclude=netdata*" >> /etc/yum.conf
after this, we have version 1.19 installed again that actually works with XEN xcp-ng
I can confirm this as well
several new ubuntu 24 vm's with LVM having this problem. I thought i was going crazy
existing debian 10,11,12 VM's using LVM are not effected
vm's not using LVM are not effected.
Current version: 5.106.4
Mirror Incremental backup task
bug: proxy field cannot be changed back to empty if previously saved with a proxy
I cannot change task from using a proxy to NOT using a proxy.

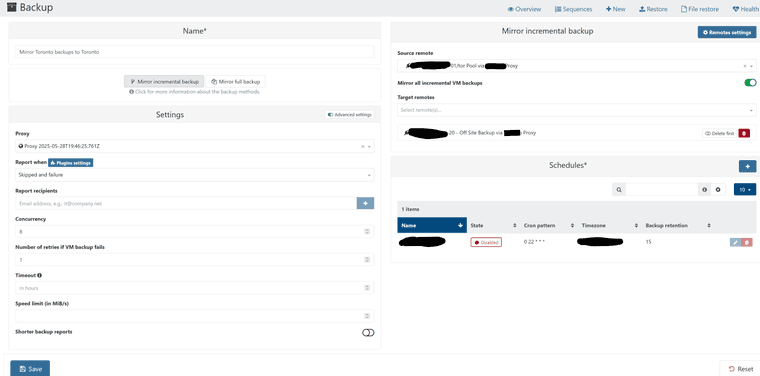

changing config from :
Proxy
source via proxy
target via proxy

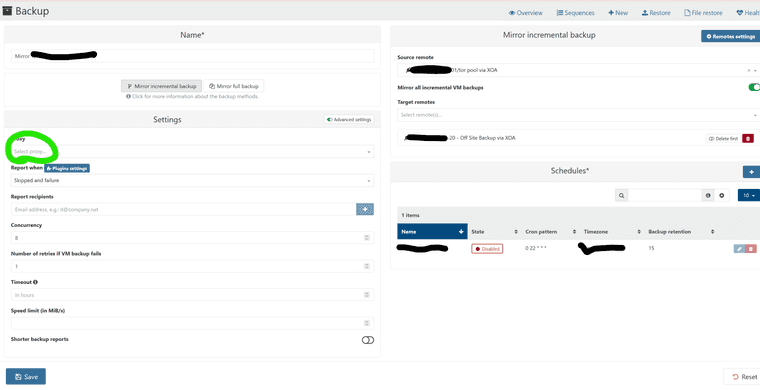

TO:
NO proxy
source
target

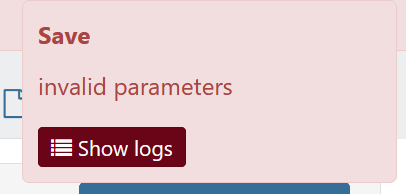

result:

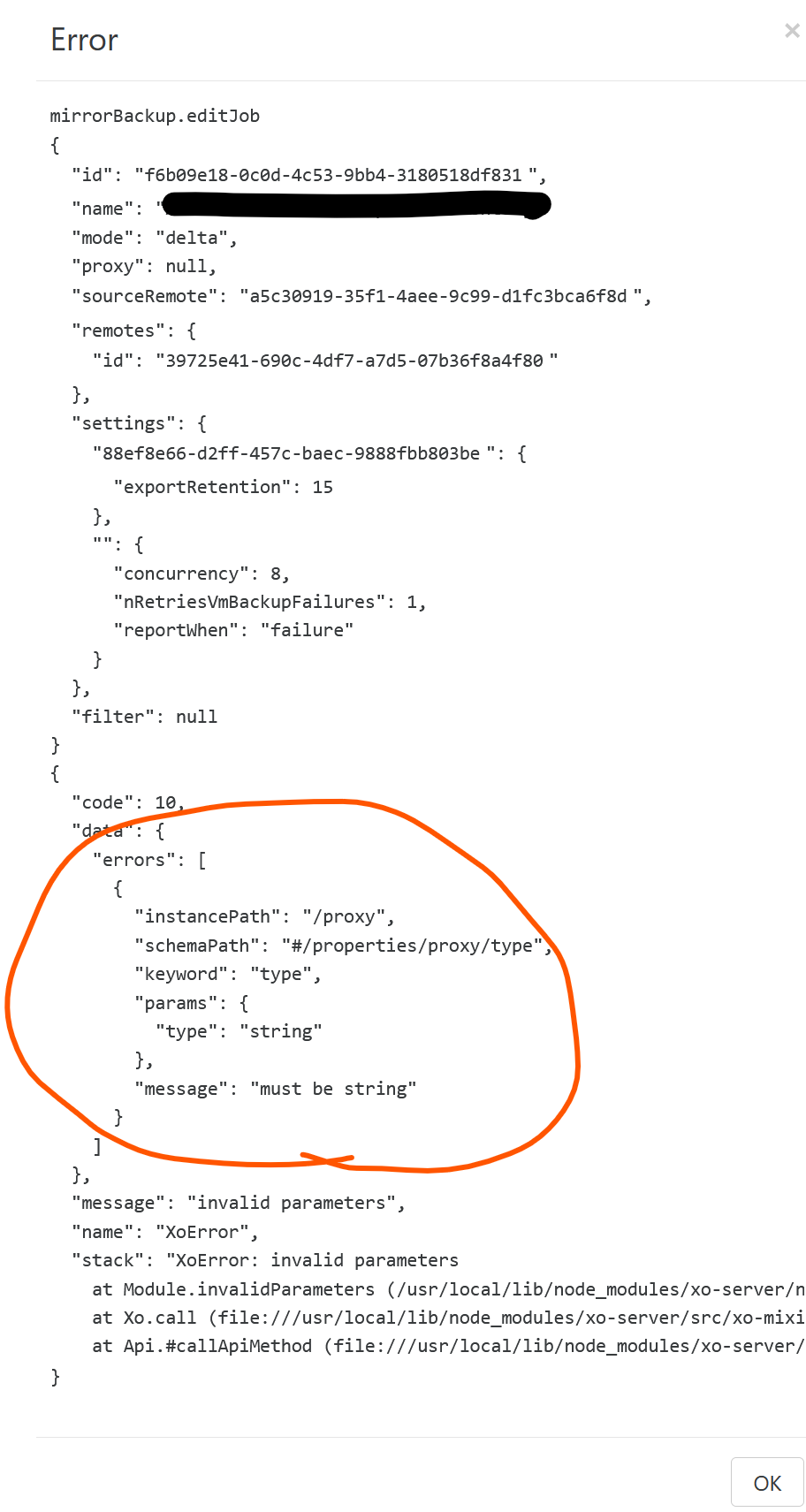

error seems like you cant change the proxy value from being filled in to being empty.. however you can make new tasks with this field being empty.
only way i can get around this to re create the back task from scratch.
all proxies and XOA can talk to the remotes in play
Thanks
hello
running xcp-ng version 8.2.1 build date 2025-05-07
restart of node has been done
netdata-ui
version 1.19
release 6.xcpng8.2
from xcp-ng-updates repo
netdata
version1.44.3
release 6.xcpng8.2
from xcp-ng-updates repo
confirmed following also installed
xen-dom0-libs-devel
yajl-devel
xen-devel
i have removed and reinstalled netdata-ui as well
this was working fine before but sometime in the last few months , maybe when netdata updated to the versions above and the interface all changed, VM's are no longer visible in netdata
use to be a giant list of VMs here,
this is happening on all my xcp-ng servers, not just the one. they are all at the above mentioned xcp-ng version and netdata version.
anyone else experiencing this? have any suggestions on whats going on, why the VM's are not showing up in netdata anymore on any of my hosts?
Hi,
last night we had a couple of vm's in a MIRRORING of delta backups task fail. 3 VM's did not mirror for reasons that do not matter for this bug.
when we corrected the issue that caused them mirroring fail we went into XOA and pressed the button to just restart the tasks for the failed VM's only... however OXA decided to redo the entire mirror task and sync EVERY vm on the src backup location.
clicking this to restart just those 3 vm's
caused this to happen... it re synced ALL of them, not just the 3 that failed
XOA version: Current version: 5.103.1
i am assuming this is not working correctly?
I would like to ask a followup question to confirm.
so IF using sequences, we should disable the backup tasks on the overview tab?
I have, what is hopefully a final update to this issue(s).
we upgraded to xoa version .99 a few weeks ago and the problem has now gone away. we suspect that some changes were made for timeouts in xoa that have resolved this , and a few other related problems.
Just an update on this:
we made sure all our server times were synced. issue happened again the next run.
just for shits and giggles we restarted toolstack on the all the hosts yesterday and the problem went away. no issues with the backup last night. maybe just a coincidence, we are continuing to monitor.
we also noticed that even though this CHOP error is coming up, snapshots are getting created
After much digging I traced the following formal exceptions below from
XEN. For most of them, the "chop" error is burried in the bowels of XAPI.
ie
Oct 18 21:46:29 fen-xcp-01 SMGC: [28249] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 238, in _parse_result
Oct 18 21:46:29 fen-xcp-01 SMGC: [28249] raise
Failure(result['ErrorDescription'])
It's worth noting due to the time involved in this, the only things
considered in play where nfs-01/02 and lesser degree 03. The one XCP
pool (fen-xcp), and even lesser degree XOA itself.'
I could not find any obvious issues with storage, neither hardware nor
data. Scrubs were fine, no cpu/hardware errors.
I could not find any obvious issues with xcp hosts, neither hardware nor
data. No cpu/hardware errors.
The only real change made was to correct the clock on nfs-01. I don't
see how that could affect this since most if not all locking is done
with flock.
There is a valid argument to be made that Xen technically was responding
to an issue, though not entirely clear what nor how. Most of the other
errors / wtfbbq states are either directly related (in call path), or
indirectly (xen wanted a thing, didn't get it). Those are some deep
rabbit holes.
There is more pre/post context to these, tried to include what I thought
made them a bit more easier to understand.
./SMlog.4.gz:Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] * E X C E
P T I O N *
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] leaf-coalesce: EXCEPTION <class
'XenAPI.Failure'>, ['INTERNAL_ERROR', 'Invalid argument: chop']
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1774, in coalesceLeaf
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] self._coalesceLeaf(vdi)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2048, in _coalesceLeaf
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] if not
self._snapshotCoalesce(vdi):
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2153, in _snapshotCoalesce
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] self._coalesce(tempSnap)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1962, in _coalesce
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] self.deleteVDI(vdi)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2469, in deleteVDI
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] self._checkSlaves(vdi)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2482, in _checkSlaves
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] self._checkSlave(hostRef, vdi)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2491, in _checkSlave
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] text =
_host.call_plugin(*call)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 264, in __call__
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] return
self.__send(self.__name, args)
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 160, in xenapi_request
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] result =
_parse_result(getattr(self, methodname)(*full_params))
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 238, in _parse_result
Oct 19 00:19:36 fen-xcp-01 SMGC: [3729] raise
Failure(result['ErrorDescription'])
./SMlog.4.gz:Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] * E X C E
P T I O N *
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] leaf-coalesce: EXCEPTION <class
'XenAPI.Failure'>, ['INTERNAL_ERROR', 'Invalid argument: chop']
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1774, in coalesceLeaf
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] self._coalesceLeaf(vdi)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2048, in _coalesceLeaf
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] if not
self._snapshotCoalesce(vdi):
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2153, in _snapshotCoalesce
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] self._coalesce(tempSnap)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1962, in _coalesce
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] self.deleteVDI(vdi)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2469, in deleteVDI
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] self._checkSlaves(vdi)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2482, in _checkSlaves
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] self._checkSlave(hostRef, vdi)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2491, in _checkSlave
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] text = _host.call_plugin(*call)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 264, in __call__
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] return
self.__send(self.__name, args)
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 160, in xenapi_request
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] result =
_parse_result(getattr(self, methodname)(*full_params))
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 238, in _parse_result
Oct 19 00:22:04 fen-xcp-01 SMGC: [3729] raise
Failure(result['ErrorDescription'])
./SMlog.4.gz:Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] * E X C E
P T I O N *
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] gc: EXCEPTION <class
'XenAPI.Failure'>, ['INTERNAL_ERROR', 'Invalid argument: chop']
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 3388, in gc
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] _gc(None, srUuid,
dryRun)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 3273, in _gc
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] _gcLoop(sr, dryRun)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 3214, in _gcLoop
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729]
sr.garbageCollect(dryRun)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1794, in garbageCollect
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729]
self.deleteVDIs(vdiList)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2374, in deleteVDIs
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] SR.deleteVDIs(self,
vdiList)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 1808, in deleteVDIs
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] self.deleteVDI(vdi)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2469, in deleteVDI
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] self._checkSlaves(vdi)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2482, in _checkSlaves
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729]
self._checkSlave(hostRef, vdi)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/opt/xensource/sm/cleanup.py", line 2491, in _checkSlave
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] text =
_host.call_plugin(*call)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 264, in __call__
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] return
self.__send(self.__name, args)
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 160, in xenapi_request
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] result =
_parse_result(getattr(self, methodname)(*full_params))
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 238, in _parse_result
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729] raise
Failure(result['ErrorDescription'])
Oct 19 00:22:11 fen-xcp-01 SMGC: [3729]
./SMlog.5.gz:Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] * E X C
E P T I O N *
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] GC process exiting, no work left
Oct 18 21:51:23 fen-xcp-01 SM: [30714] lock: released
/var/lock/sm/0cff5362-5c89-2241-2207-a1d736d9ef5e/gc_active
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] In cleanup
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] SR 0cff ('fen-nfs-03 - DR
(Diaster Recovery Storage ZFS/NFS)') (608 VDIs in 524 VHD trees): no changes
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714]
*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] ***********************
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] * E X C E P T I O N *
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] ***********************
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] gc: EXCEPTION <class
'XenAPI.Failure'>, ['INTERNAL_ERROR', 'Invalid argument: chop']
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 3388, in gc
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] _gc(None, srUuid, dryRun)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 3273, in _gc
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] _gcLoop(sr, dryRun)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 3214, in _gcLoop
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] sr.garbageCollect(dryRun)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 1794, in garbageCollect
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] self.deleteVDIs(vdiList)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 2374, in deleteVDIs
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] SR.deleteVDIs(self, vdiList)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 1808, in deleteVDIs
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] self.deleteVDI(vdi)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 2469, in deleteVDI
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] self._checkSlaves(vdi)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 2482, in _checkSlaves
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] self._checkSlave(hostRef, vdi)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/opt/xensource/sm/cleanup.py", line 2491, in _checkSlave
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] text =
_host.call_plugin(*call)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 264, in __call__
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] return
self.__send(self.__name, args)
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 160, in xenapi_request
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] result =
_parse_result(getattr(self, methodname)(*full_params))
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] File
"/usr/lib/python2.7/site-packages/XenAPI.py", line 238, in _parse_result
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] raise
Failure(result['ErrorDescription'])
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714]
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714]
*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*~*
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714] * * * * * SR
0cff5362-5c89-2241-2207-a1d736d9ef5e: ERROR
Oct 18 21:51:23 fen-xcp-01 SMGC: [30714]
Oct 18 21:51:28 fen-xcp-01 SM: [26746] lock: opening lock file
/var/lock/sm/894e5d0d-c100-be00-4fc4-b0c6db478a26/sr
@tuxen no sorry, great idea but we are not seeing any errors like that in kern.log. this problem when it happens is across several xen hosts all at the same time. it would be wild if all of the xen hosts were having hardware issues during the small window of time this problem happened in. if it was one xen server then i would look at hardware but its all of them, letting me believe its XOA, a BUG in xcp-ng or a storage problem (even though we have seen no errors or monitoring blips at all on the truenas server)
