    Second (and final) Release Candidate for QCOW2 image format support

    Scheduled Pinned Locked Moved News
    14 Posts 6 Posters 1.0k Views 10 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • A Offline
      abudef @stormi
      last edited by

      @stormi said:

      This is not exposed in Xen Orchestra yet.

      When will it likely be available in the GUI?

      stormiS julienXOvatesJ 2 Replies Last reply Reply Quote 0
      • stormiS Offline
        stormi Vates 🪐 XCP-ng Team @abudef
        last edited by

        @abudef I don't know. I forwarded the question.

        1 Reply Last reply Reply Quote 0
        • pkgwP Offline
          pkgw
          last edited by

          After upgrading from the QCOW2 beta to this set of packages, I'm running into a pretty severe bug: my QCOW2 disks still exist and are available, but have largely disappeared from the XO UI and many of the lower-level tools.

          In the XO5 storage UI, the disks appear, but their names and descriptions are lost, and even though they are currently attached to running VMs, the system doesn't recognize this:


          If I try to assign a new name to one of the VDIs as an experiment, I get a "VDI does not exist" error, even though xe vdi-list does show all of these VDIs.

          On the other hand, I have running VMs where QCOW2 VDIs are attached and mounted, but the xe vm-disk-list command doesn't show them.

          I see that there's a new batch of updates from a few days ago — any chance they will address this?

          stormiS 2 Replies Last reply Reply Quote 0
          • julienXOvatesJ Offline
            julienXOvates Vates 🪐 XO Team @abudef
            last edited by

            @abudef we'll add it in the near-term (June hopefully) as QCOW2 support is a major update in the VMS stack !

            1 Reply Last reply Reply Quote 1
            • stormiS Offline
              stormi Vates 🪐 XCP-ng Team @pkgw
              last edited by

              @pkgw Would it be possible to open a ticket and a support tunnel so that @Team-Storage can look at it?

              1 Reply Last reply Reply Quote 0
              • stormiS Offline
                stormi Vates 🪐 XCP-ng Team @pkgw
                last edited by

                @pkgw Our initial theory is that you might have applied updates at some point which had replaced the sm package with one that didn't support qcow2. Then a next update would have brought it back, but the metadata lost.

                pkgwP 1 Reply Last reply Reply Quote 0
                • stormiS Offline
                  stormi Vates 🪐 XCP-ng Team
                  last edited by stormi

                  I just published, in the xcp-ng-testing repository, what is hopefully the very last round of fixes before the feature goes live.

                  You’ll have about three days to share your feedback if you’d like to be part of this final sprint 🏃.

                  Details at https://xcp-ng.org/forum/post/104961

                  1 Reply Last reply Reply Quote 1
                  • pkgwP Offline
                    pkgw @stormi
                    last edited by

                    @stormi That is quite possible. I'll open a ticket for further investigation.

                    1 Reply Last reply Reply Quote 2
                    • stormiS Offline
                      stormi Vates 🪐 XCP-ng Team
                      last edited by

                      This is it, it's now out!

                      https://xcp-ng.org/blog/2026/05/05/qcow2-is-now-ga-in-xcp-ng/

                      bogikornelB 1 Reply Last reply Reply Quote 1
                      • bogikornelB Online
                        bogikornel @stormi
                        last edited by

                        @stormi XCP-ng QCOW2 vs. VHD Performance Feedback on NVMe
                        First of all, I would like to thank the team for all the hard work in bringing QCOW2 support to a production-ready state. It is a very welcome feature.

                        I have performed some quick I/O benchmarks comparing the new QCOW2 format against the traditional VHD. In my tests, QCOW2 appears significantly slower than VHD on my hardware.

                        Test Environment
                        Hypervisor: Dell PowerEdge R420

                        CPU: Intel Xeon E5-2470 v2

                        Storage: Intel SSDPELKX010T8 NVMe

                        VM OS: Debian 13

                        VM Specs: 2 vCPUs, 1GB RAM

                        Setup: One 10GB VHD and one 10GB QCOW2 disk, both pre-filled from /dev/random.

                        Methodology
                        I used a custom test suite available here: https://vm01.unsoft.hu/~ventura/fio/fio_test_20250408.tar.gz

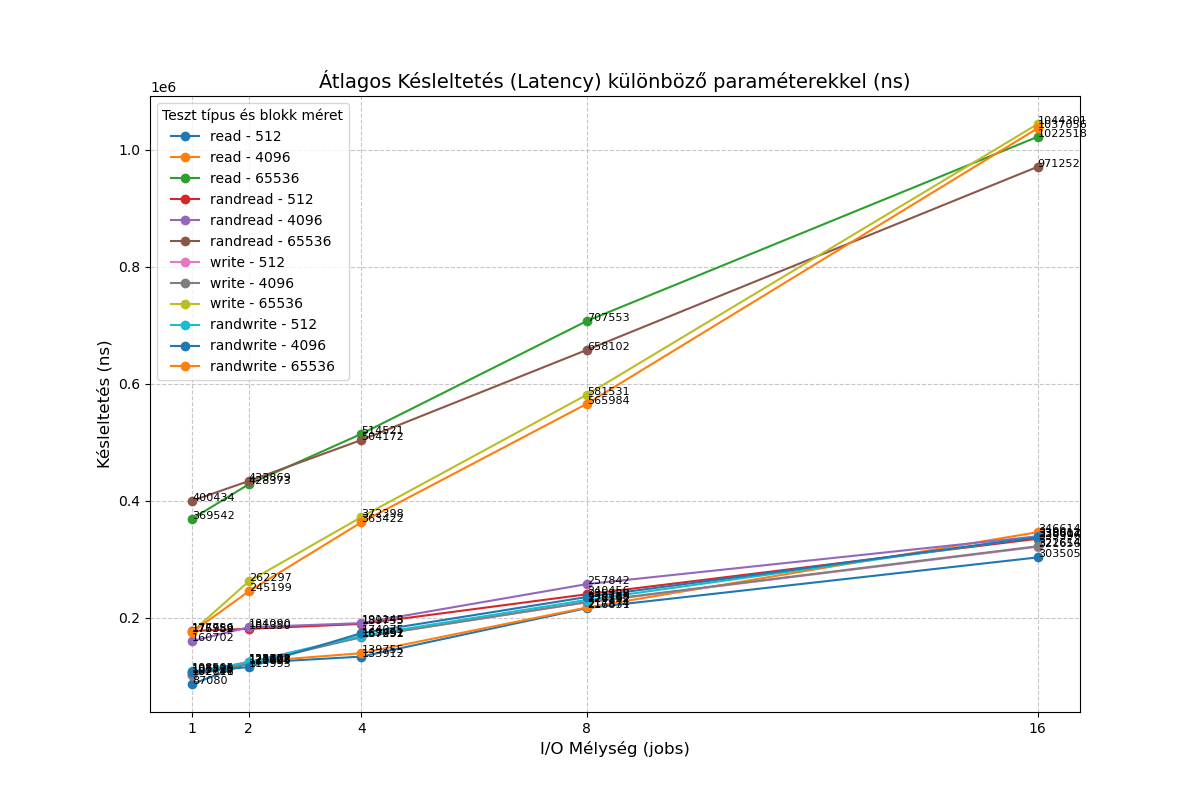

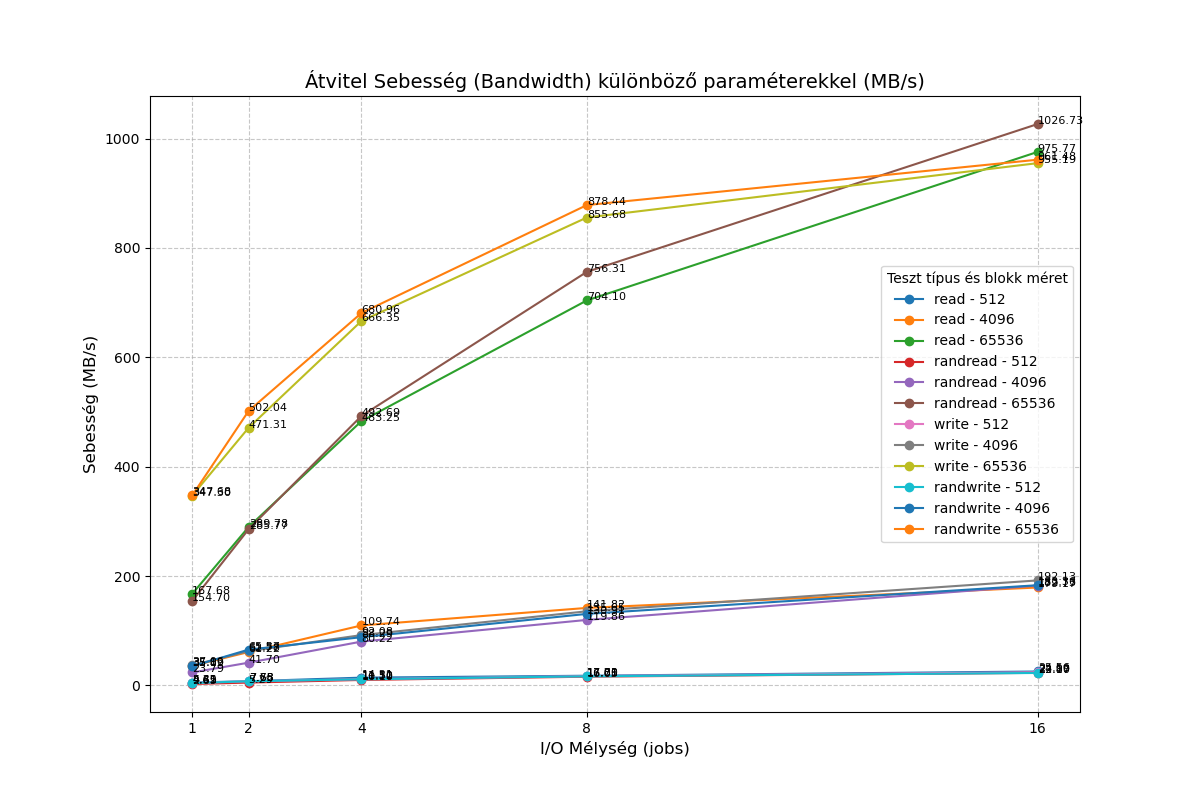

                        vhd_bandwidth_summary.png vhd_latency_summary.png

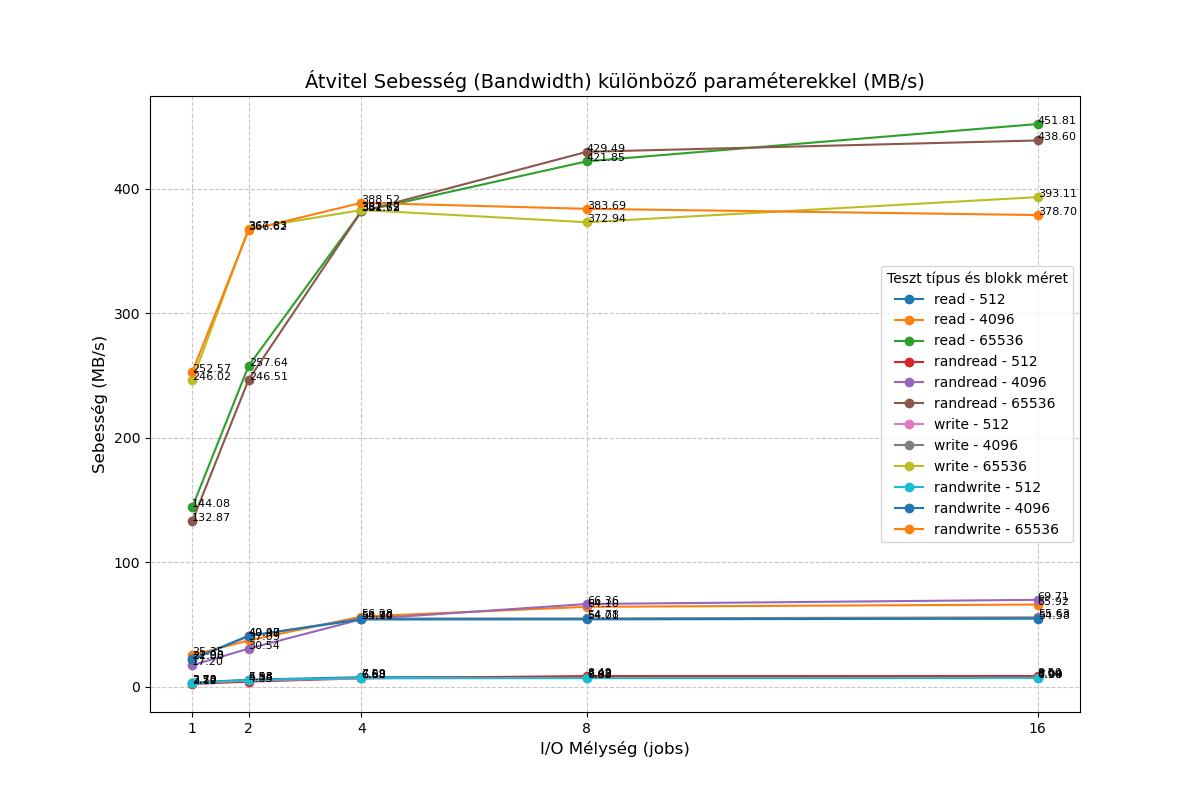

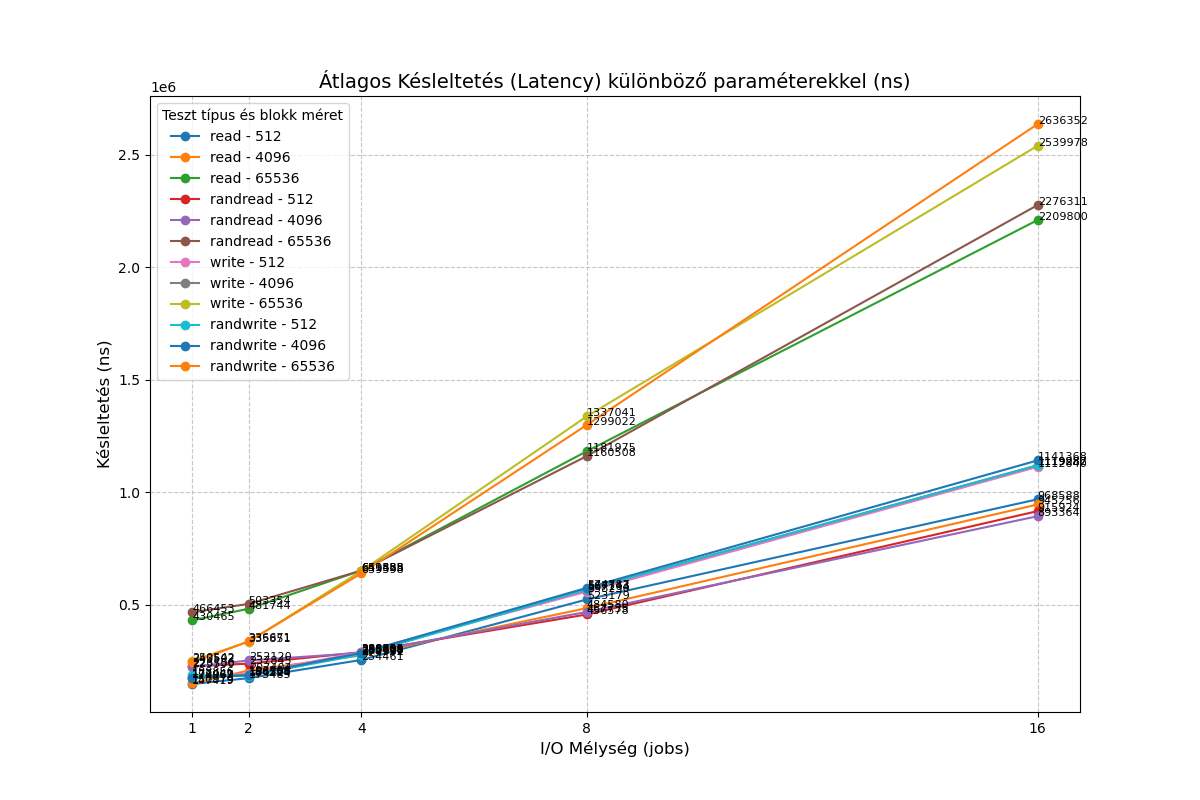

                        qcow2_bandwidth_summary.png qcow2_latency_summary.png

                        I also ran a simplefio loop with the following results:
                        VHD:

                        root@Debian-13-CloudInit-20250810:/mnt/vhd# for mode in read write; do for jobs in 1 16; do for bs in 4 64; do for t in "" rand; do printf "%2i qd %2ik % 4s " $jobs $bs $t; fio --name=random-write --rw=$t$mode --bs=${bs}k --numjobs=1 --size=1g --iodepth=$jobs --runtime=10 --time_based --direct=1 --ioengine=libaio|grep -e BW -e runt ; done; done; done; done
 1 qd  4k        read: IOPS=9625, BW=37.6MiB/s (39.4MB/s)(376MiB/10001msec)
 1 qd  4k rand   read: IOPS=5414, BW=21.2MiB/s (22.2MB/s)(212MiB/10001msec)
 1 qd 64k        read: IOPS=2657, BW=166MiB/s (174MB/s)(1661MiB/10001msec)
 1 qd 64k rand   read: IOPS=2575, BW=161MiB/s (169MB/s)(1610MiB/10001msec)
16 qd  4k        read: IOPS=45.7k, BW=178MiB/s (187MB/s)(1785MiB/10001msec)
16 qd  4k rand   read: IOPS=45.9k, BW=179MiB/s (188MB/s)(1794MiB/10001msec)
16 qd 64k        read: IOPS=16.7k, BW=1041MiB/s (1092MB/s)(10.2GiB/10001msec)
16 qd 64k rand   read: IOPS=16.7k, BW=1042MiB/s (1093MB/s)(10.2GiB/10001msec)
 1 qd  4k        write: IOPS=8842, BW=34.5MiB/s (36.2MB/s)(345MiB/10001msec); 0 zone resets
 1 qd  4k rand   write: IOPS=8880, BW=34.7MiB/s (36.4MB/s)(347MiB/10001msec); 0 zone resets
 1 qd 64k        write: IOPS=6095, BW=381MiB/s (399MB/s)(3810MiB/10001msec); 0 zone resets
 1 qd 64k rand   write: IOPS=6006, BW=375MiB/s (394MB/s)(3755MiB/10001msec); 0 zone resets
16 qd  4k        write: IOPS=49.3k, BW=193MiB/s (202MB/s)(1928MiB/10001msec); 0 zone resets
16 qd  4k rand   write: IOPS=47.3k, BW=185MiB/s (194MB/s)(1848MiB/10001msec); 0 zone resets
16 qd 64k        write: IOPS=14.3k, BW=891MiB/s (934MB/s)(8910MiB/10001msec); 0 zone resets
16 qd 64k rand   write: IOPS=15.5k, BW=966MiB/s (1013MB/s)(9663MiB/10001msec); 0 zone resets

                        QCOW2

                        root@Debian-13-CloudInit-20250810:/mnt/qcow2# for mode in read write; do for jobs in 1 16; do for bs in 4 64; do for t in "" rand; do printf "%2i qd %2ik % 4s " $jobs $bs $t; fio --name=random-write --rw=$t$mode --bs=${bs}k --numjobs=1 --size=1g --iodepth=$jobs --runtime=10 --time_based --direct=1 --ioengine=libaio|grep -e BW -e runt ; done; done; done; done
 1 qd  4k        read: IOPS=5866, BW=22.9MiB/s (24.0MB/s)(229MiB/10001msec)
 1 qd  4k rand   read: IOPS=4000, BW=15.6MiB/s (16.4MB/s)(156MiB/10001msec)
 1 qd 64k        read: IOPS=2229, BW=139MiB/s (146MB/s)(1394MiB/10001msec)
 1 qd 64k rand   read: IOPS=2161, BW=135MiB/s (142MB/s)(1351MiB/10001msec)
16 qd  4k        read: IOPS=16.9k, BW=66.2MiB/s (69.4MB/s)(662MiB/10001msec)
16 qd  4k rand   read: IOPS=17.6k, BW=68.8MiB/s (72.1MB/s)(688MiB/10001msec)
16 qd 64k        read: IOPS=7244, BW=453MiB/s (475MB/s)(4529MiB/10002msec)
16 qd 64k rand   read: IOPS=6994, BW=437MiB/s (458MB/s)(4372MiB/10002msec)
 1 qd  4k        write: IOPS=5551, BW=21.7MiB/s (22.7MB/s)(217MiB/10001msec); 0 zone resets
 1 qd  4k rand   write: IOPS=5159, BW=20.2MiB/s (21.1MB/s)(202MiB/10001msec); 0 zone resets
 1 qd 64k        write: IOPS=4024, BW=252MiB/s (264MB/s)(2515MiB/10001msec); 0 zone resets
 1 qd 64k rand   write: IOPS=4027, BW=252MiB/s (264MB/s)(2517MiB/10001msec); 0 zone resets
16 qd  4k        write: IOPS=14.5k, BW=56.8MiB/s (59.6MB/s)(568MiB/10002msec); 0 zone resets
16 qd  4k rand   write: IOPS=14.0k, BW=54.7MiB/s (57.4MB/s)(547MiB/10001msec); 0 zone resets
16 qd 64k        write: IOPS=6360, BW=398MiB/s (417MB/s)(3976MiB/10002msec); 0 zone resets
16 qd 64k rand   write: IOPS=6090, BW=381MiB/s (399MB/s)(3807MiB/10002msec); 0 zone resets

                        I would be interested to know if I'm overlooking something, or if the qcow2 format simply provides lower performance compared to VHD for the time being?

                        1 Reply Last reply Reply Quote 0
                        • olivierlambertO Online
                          olivierlambert Vates 🪐 Co-Founder CEO
                          last edited by

                          Might be interesting to test a different cluster size and see the impact 🤔

                          https://docs.xcp-ng.org/storage/qcow2_faq/#can-we-change-the-qcow2-cluster-size

                          bogikornelB 1 Reply Last reply Reply Quote 0
                          • bogikornelB Online
                            bogikornel @olivierlambert
                            last edited by

                            @olivierlambert said:

                            Might be interesting to test a different cluster size and see the impact

                            I tested it with a cluster size of 2 megabytes, and nothing changed

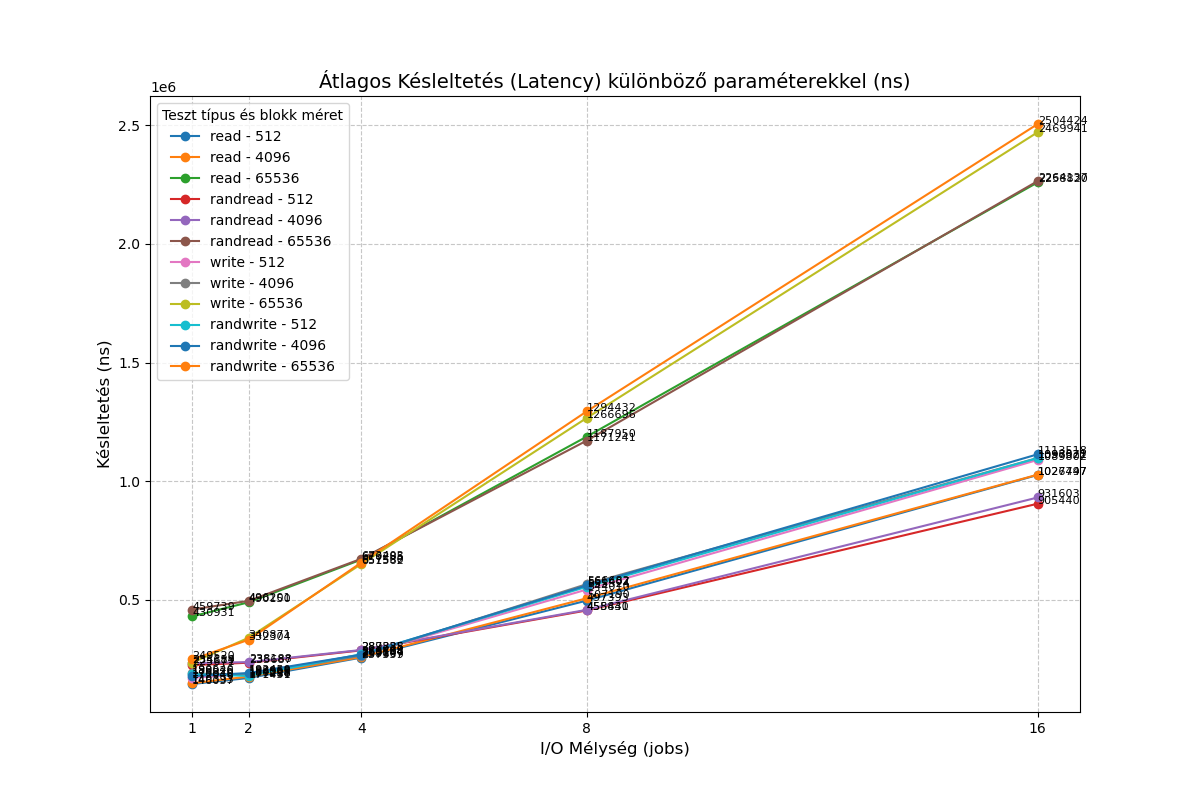

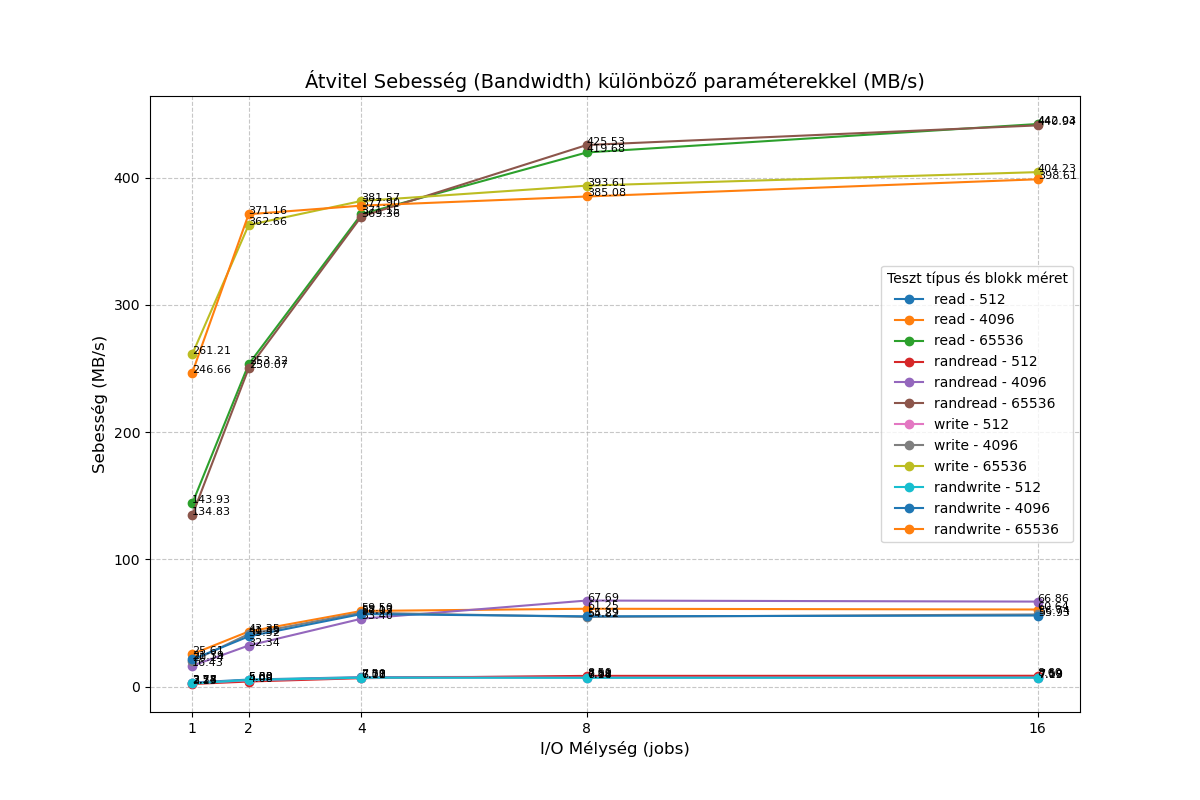

                            qcow2-2m_bandwidth_summary.png qcow2-2m_latency_summary.png

                            1 Reply Last reply Reply Quote 0
