XO Backup Error: VDI_IN_USE(OpaqueRef:.., destroy)
-
Hi there.
Given is a community edition XO on commit 3500d.
Since June 6th one out of seven VMs is no longer backing up.
It is always the same VM which is failing.

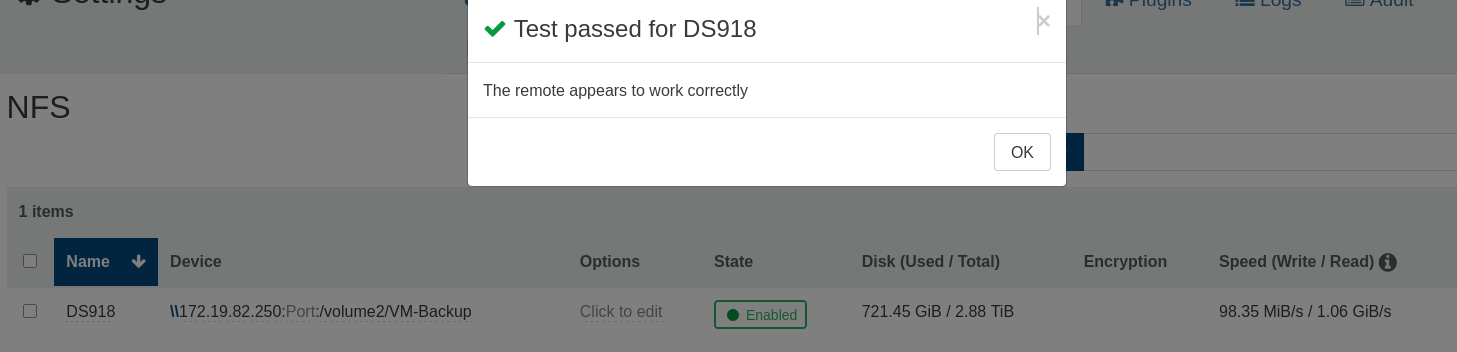

The remote is working (six VMs back up without issue).
It seems XO has trouble cleaning up the backup directory:

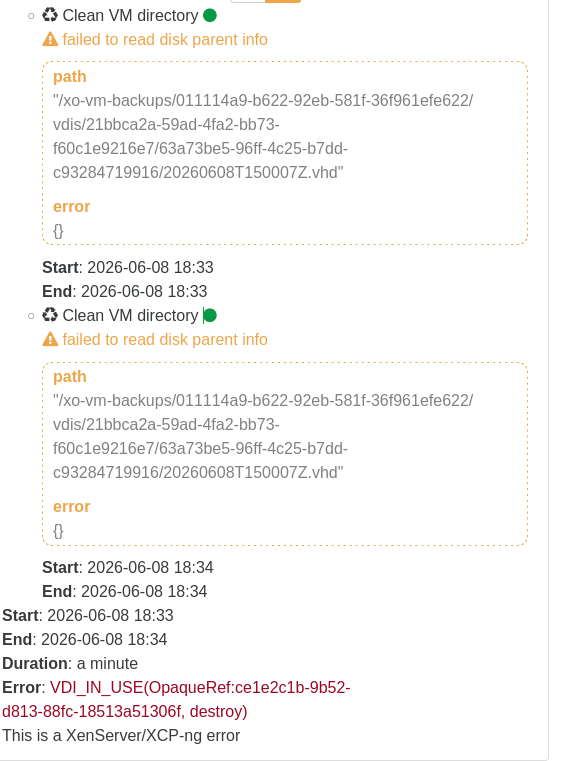

Here is the full backup log:
{ "data": { "mode": "delta", "reportWhen": "failure" }, "id": "1780936394962", "jobId": "21bbca2a-59ad-4fa2-bb73-f60c1e9216e7", "jobName": "VM-Backup", "message": "backup", "scheduleId": "15044139-f4b7-4078-92bc-891e9b641d52", "start": 1780936394962, "status": "failure", "tasks": [ { "id": "0mq5fjqwf-22j12nbve5e", "start": 1780936397295, "status": "failure", "tasks": [ { "id": "0mq5fjqwy-ymsrhlbl67s", "start": 1780936397314, "status": "success", "warnings": [ { "data": { "path": "/xo-vm-backups/011114a9-b622-92eb-581f-36f961efe622/vdis/21bbca2a-59ad-4fa2-bb73-f60c1e9216e7/63a73be5-96ff-4c25-b7dd-c93284719916/20260608T150007Z.vhd", "error": {} }, "message": "failed to read disk parent info" } ], "end": 1780936399044, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fku8o-i3wwl2zfkza", "start": 1780936448280, "status": "success", "warnings": [ { "data": { "path": "/xo-vm-backups/011114a9-b622-92eb-581f-36f961efe622/vdis/21bbca2a-59ad-4fa2-bb73-f60c1e9216e7/63a73be5-96ff-4c25-b7dd-c93284719916/20260608T150007Z.vhd", "error": {} }, "message": "failed to read disk parent info" } ], "end": 1780936454149, "result": { "merge": false, "size": 0 }, "message": "clean-vm" } ], "end": 1780936454187, "result": { "code": "VDI_IN_USE", "params": [ "OpaqueRef:ce1e2c1b-9b52-d813-88fc-18513a51306f", "destroy" ], "task": { "uuid": "173eb901-7e4b-90d5-48cb-1306493d61d5", "name_label": "Async.VDI.destroy", "name_description": "", "allowed_operations": [], "current_operations": {}, "created": "20260608T16:34:06Z", "finished": "20260608T16:34:08Z", "status": "failure", "resident_on": "OpaqueRef:8a7ca417-3c20-466f-8ebc-f19cbb63384f", "progress": 1, "type": "<none/>", "result": "", "error_info": [ "VDI_IN_USE", "OpaqueRef:ce1e2c1b-9b52-d813-88fc-18513a51306f", "destroy" ], "other_config": {}, "subtask_of": "OpaqueRef:NULL", "subtasks": [], "backtrace": "(((process xapi)(filename ocaml/xapi/message_forwarding.ml)(line 5212))((process xapi)(filename fun.ml)(line 33))((process xapi)(filename fun.ml)(line 38))((process xapi)(filename ocaml/xapi/helpers.ml)(line 1821))((process xapi)(filename ocaml/xapi/message_forwarding.ml)(line 5201))((process xapi)(filename ocaml/xapi/rbac.ml)(line 228))((process xapi)(filename ocaml/xapi/rbac.ml)(line 238))((process xapi)(filename ocaml/xapi/server_helpers.ml)(line 78)))" }, "message": "VDI_IN_USE(OpaqueRef:ce1e2c1b-9b52-d813-88fc-18513a51306f, destroy)", "name": "XapiError", "stack": "XapiError: VDI_IN_USE(OpaqueRef:ce1e2c1b-9b52-d813-88fc-18513a51306f, destroy)\n at XapiError.wrap (file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/_XapiError.mjs:16:12)\n at default (file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/_getTaskResult.mjs:13:29)\n at Xapi._addRecordToCache (file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/index.mjs:1078:24)\n at file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/index.mjs:1112:14\n at Array.forEach (<anonymous>)\n at Xapi._processEvents (file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/index.mjs:1102:12)\n at Xapi._watchEvents (file:///opt/xo/xo-builds/xen-orchestra-202606081816/packages/xen-api/index.mjs:1275:14)\n at process.processTicksAndRejections (node:internal/process/task_queues:104:5)" }, "message": "backup VM", "data": { "id": "011114a9-b622-92eb-581f-36f961efe622", "type": "VM", "name_label": "ITServices" } }, { "id": "0mq5fjqwh-hhuivj17nmu", "start": 1780936397297, "status": "success", "tasks": [ { "id": "0mq5fjqx1-nwsciopgbxh", "start": 1780936397317, "status": "success", "end": 1780936399283, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fjsl1-29b0qivtg74", "start": 1780936399477, "status": "success", "end": 1780936401784, "result": "0d56ceb1-a627-1c97-e25d-ab641d5d3317", "message": "snapshot" }, { "id": "0mq5fjud4-an4b4yrzygv", "start": 1780936401784, "status": "success", "tasks": [ { "id": "0mq5fjvy2-qfouxpigsx", "start": 1780936403834, "status": "success", "end": 1780936418474, "result": { "size": 652498432 }, "message": "transfer", "data": { "progress": 99 } }, { "id": "0mq5fkcfx-f456mkr06ov", "start": 1780936425213, "status": "success", "end": 1780936426551, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936428639, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780936428639, "message": "backup VM", "data": { "id": "44ae09b4-47d2-ab1c-e187-3020f0626d74", "type": "VM", "name_label": "Unifi_OS_Server", "progress": 0 } }, { "id": "0mq5fjqwi-vahgy7faqum", "start": 1780936397298, "status": "success", "tasks": [ { "id": "0mq5fjqx0-7cex64zgf22", "start": 1780936397316, "status": "success", "end": 1780936399539, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fjswh-ubn0k70kwtb", "start": 1780936399889, "status": "success", "end": 1780936402821, "result": "5dc9f1c0-e790-c9cd-1309-ec58f64beedb", "message": "snapshot" }, { "id": "0mq5fjv5x-4cl03s5xrcs", "start": 1780936402821, "status": "success", "tasks": [ { "id": "0mq5fjwif-1eoxjx0ass2", "start": 1780936404567, "status": "success", "end": 1780936434954, "result": { "size": 1021871616 }, "message": "transfer", "data": { "progress": 100 } }, { "id": "0mq5fkklg-ubob0jzzxb", "start": 1780936435780, "status": "success", "end": 1780936441161, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936441176, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780936441176, "message": "backup VM", "data": { "id": "e764ee17-19de-29fc-802f-e97385d0635d", "type": "VM", "name_label": "Graylog", "progress": 0 } }, { "id": "0mq5fjqwi-eyuvf4i18bv", "start": 1780936397298, "status": "success", "tasks": [ { "id": "0mq5fjqwx-kykb7016aud", "start": 1780936397313, "status": "success", "end": 1780936399348, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fjsl0-1jdpq922616", "start": 1780936399476, "status": "success", "end": 1780936400960, "result": "d403776f-e797-5af2-2428-35963e1af590", "message": "snapshot" }, { "id": "0mq5fjtq9-o2xr8f7gelf", "start": 1780936400961, "status": "success", "tasks": [ { "id": "0mq5fjvcs-7jaedl39bym", "start": 1780936403068, "status": "success", "end": 1780936471627, "result": { "size": 4130425344 }, "message": "transfer", "data": { "progress": 100 } }, { "id": "0mq5fld9j-pzmbsqgh56", "start": 1780936472935, "status": "success", "end": 1780936476387, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936476416, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780936476416, "message": "backup VM", "data": { "id": "a329942c-10e9-70d4-4155-95c70e6c25c8", "type": "VM", "name_label": "XenOrchestra_Prod", "progress": 0 } }, { "id": "0mq5fkf41-weadm4wk1xp", "start": 1780936428673, "status": "success", "tasks": [ { "id": "0mq5fkf5n-2ponux8v3bm", "start": 1780936428731, "status": "success", "end": 1780936430525, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fkgor-fwufkt4zm1f", "start": 1780936430715, "status": "success", "end": 1780936431803, "result": "649ca352-0aab-dbd9-d75b-aae8748fb6a8", "message": "snapshot" }, { "id": "0mq5fkhiz-u5o8qh9lpoh", "start": 1780936431803, "status": "success", "tasks": [ { "id": "0mq5fklec-1glqm0n1642", "start": 1780936436820, "status": "success", "end": 1780936437167, "result": { "size": 43008 }, "message": "transfer", "data": { "progress": 100 } }, { "id": "0mq5fkn5y-g2hl3nyuc2f", "start": 1780936439110, "status": "success", "end": 1780936440668, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936440676, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780936440676, "message": "backup VM", "data": { "id": "8ec416aa-4885-b82b-e9ac-24df17672916", "type": "VM", "name_label": "RustDesk", "progress": 0 } }, { "id": "0mq5fkodk-tkwoc2uthf", "start": 1780936440680, "status": "success", "tasks": [ { "id": "0mq5fkodq-e3kpftr1kr", "start": 1780936440686, "status": "success", "end": 1780936443708, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fkqvi-egmgr1fdy0t", "start": 1780936443918, "status": "success", "end": 1780936447236, "result": "8bec4422-5b08-5410-eff2-4f8d8c6d0ac7", "message": "snapshot" }, { "id": "0mq5fktfo-iuhc7r90uvc", "start": 1780936447236, "status": "success", "tasks": [ { "id": "0mq5fkv4r-dz2833iynb", "start": 1780936449435, "status": "success", "end": 1780936457597, "result": { "size": 180524032 }, "message": "transfer", "data": { "progress": 100 } }, { "id": "0mq5fl3af-hde5wx2577", "start": 1780936460007, "status": "success", "end": 1780936461168, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936461396, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780936461396, "message": "backup VM", "data": { "id": "db880663-5c76-ad1d-ce9c-126db11c4822", "type": "VM", "name_label": "Nextcloud", "progress": 0 } }, { "id": "0mq5fkorf-psnurqj48qp", "start": 1780936441179, "status": "success", "tasks": [ { "id": "0mq5fkork-ui1kc8oo0i9", "start": 1780936441184, "status": "success", "end": 1780936443835, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5fkr16-ve61u2lg6yr", "start": 1780936444122, "status": "success", "end": 1780936448319, "result": "4436636b-5f56-347c-45d9-339dfbde7809", "message": "snapshot" }, { "id": "0mq5fku9r-4i3dvxltfoh", "start": 1780936448319, "status": "success", "tasks": [ { "id": "0mq5fkuzl-zbg2ht2gowa", "start": 1780936449249, "status": "success", "end": 1780936568326, "result": { "size": 8392878592 }, "message": "transfer", "data": { "progress": 99 } }, { "id": "0mq5fnfo4-lh7uyjgbpw", "start": 1780936569364, "status": "success", "end": 1780936570543, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780936570549, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": true, "type": "remote" } } ], "end": 1780936570549, "message": "backup VM", "data": { "id": "d01f5065-7ce2-cdfe-a11d-066000777c63", "type": "VM", "name_label": "Netbox", "progress": 0 } } ], "end": 1780936570551, "infos": [ { "data": { "vms": [ "44ae09b4-47d2-ab1c-e187-3020f0626d74", "e764ee17-19de-29fc-802f-e97385d0635d", "011114a9-b622-92eb-581f-36f961efe622", "a329942c-10e9-70d4-4155-95c70e6c25c8", "8ec416aa-4885-b82b-e9ac-24df17672916", "db880663-5c76-ad1d-ce9c-126db11c4822", "d01f5065-7ce2-cdfe-a11d-066000777c63" ] }, "message": "vms" } ] }Maybe this is linked to the thread by @andrew :
I upgraded today to commit 3500d, rebooted the XO VM and retried the backup. Still failing.
Thanks for the assistance.
Regards,
Marc -
@itservices Can you create a new backup job with just this VM and see if it's able to create a new chain?
-
Hi @DustinB

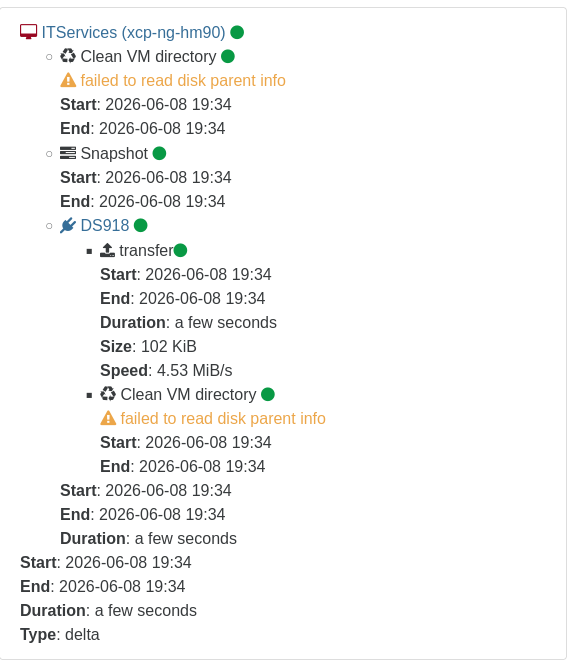

The VM could be backed up successfully with the same warning about the "disk parent":
The backup log:
{ "data": { "mode": "delta", "reportWhen": "never" }, "id": "1780940083480", "jobId": "8326600e-9863-4afa-b724-ae493f564ec8", "jobName": "ITServices-Detla-Test", "message": "backup", "scheduleId": "98f60867-3ac9-4ec5-b0fc-c3fe5520dc1b", "start": 1780940083480, "status": "success", "tasks": [ { "id": "0mq5hqsy6-9uqj9yfb22", "start": 1780940085774, "status": "success", "tasks": [ { "id": "0mq5hqsyx-i5pdr4zkson", "start": 1780940085801, "status": "success", "warnings": [ { "data": { "path": "/xo-vm-backups/011114a9-b622-92eb-581f-36f961efe622/vdis/21bbca2a-59ad-4fa2-bb73-f60c1e9216e7/63a73be5-96ff-4c25-b7dd-c93284719916/20260608T150007Z.vhd", "error": {} }, "message": "failed to read disk parent info" } ], "end": 1780940085910, "result": { "merge": false, "size": 0 }, "message": "clean-vm" }, { "id": "0mq5hqtyu-9l484fbage", "start": 1780940087094, "status": "success", "end": 1780940087947, "result": "396960d5-93e9-670e-e8b5-345283148c0f", "message": "snapshot" }, { "id": "0mq5hqumk-7yfetdkltc2", "start": 1780940087948, "status": "success", "tasks": [ { "id": "0mq5hqvn3-wfuuk0sz1mi", "start": 1780940089263, "status": "success", "end": 1780940089285, "result": { "size": 104448 }, "message": "transfer", "data": { "progress": 100 } }, { "id": "0mq5hr0dj-1l495zk6iys", "start": 1780940095399, "status": "success", "warnings": [ { "data": { "path": "/xo-vm-backups/011114a9-b622-92eb-581f-36f961efe622/vdis/21bbca2a-59ad-4fa2-bb73-f60c1e9216e7/63a73be5-96ff-4c25-b7dd-c93284719916/20260608T150007Z.vhd", "error": {} }, "message": "failed to read disk parent info" } ], "end": 1780940095573, "result": { "merge": true, "size": 0 }, "message": "clean-vm" } ], "end": 1780940095590, "message": "export", "data": { "id": "442a4fc2-70ff-474d-aae9-88d0249ef5f2", "isFull": false, "type": "remote" } } ], "end": 1780940095590, "message": "backup VM", "data": { "id": "011114a9-b622-92eb-581f-36f961efe622", "type": "VM", "name_label": "ITServices", "progress": 0 } } ], "end": 1780940095591, "infos": [ { "data": { "vms": [ "011114a9-b622-92eb-581f-36f961efe622" ] }, "message": "vms" } ] }I am using "smart mode" for backup jobs. The standalone job went through with and without "smart mode".
Removing the tag from the VM in question and adding it again did not help. I have also deleted the snapshot linked to the backup job and retried, with no change in behavior.
The VM is shutdown and I only turn it on when I need to. During backup it is usually not running.
Thanks again.
Regards,
Marc
