VMware vm migration with XOA and XOProxy

[acebmxer]

So i am doing a vm migration from vmware and using XO Proxy and I am confused by the data being routed around. This is just a test VM.

Location 1 - Delilah Pool - XOA installed
Location 2 - Tilton Pool - XO Proxy
ESXI host at location 2.

Location 1 & 2 connection via site to site vpn.

I am seeing load on XOA, XO Proxy and each host. I would expect to only see load on XO Proxy and host at location 2.

[olivierlambert]

Ping @florent

[florent]

@acebmxer is the proxy used as a http proxy forone of the involved pool ?

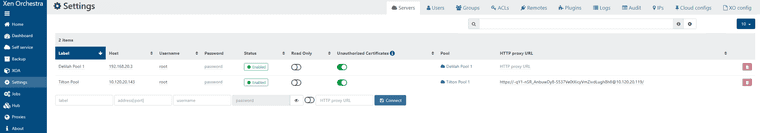

can you show a screenshot of your "server" screen ?

[acebmxer]

@florent Here you go.

[florent]

@acebmxer is 10.120.20.119 your xo- proxy ?

I misread your question, you want to exclude the xoa from the process, not the proxy. Today the disk conversion can only be done directly by the xoa.
The data flow is always {vpshere/esxi} => xoa => xcp-ng , with a proxy that can be between xoa and xcp-ng

The only way to handle this without goiing through delilah would be to deploy a second xoa/xoce directly in tilton pool . You can have multiple xoa connected to the same pool.
