PCI device doesn't show in XO or xe pci-list

olivierlambert

Same answer than the other topic, checking first the basics before investigating further

chicagomed

@olivierlambert I'm going to swap in an AMD card today and will let you know if anything changes!

Pyroteq

My issue isn't that I can't pass through the card at all, I can still do it via CLI just fine so there isn't really any real problem preventing me from hiding the card from dom0 and then attaching it to my Plex VM. I was just curious why some devices are listed with xe pci-list and others aren't because I would have thought that it would essentially just reflect whatever shows in lspci.

Having it show in xe pci-list would just mean it's easier to attach/detach from a VM as it would then show in the webUI.

Does XCP-NG require the built in driver support to list the devices in pci-list?? Because the TV tuner doesn't work natively on Linux without downloading the drivers so I guess that could be a possibility?

olivierlambert

@Pyroteq OK so it's more clear to me now. So there's an issue on how we report all the devices to make it doable via Xen Orchestra. I'm not sure exactly who to ping, maybe @Team-Hypervisor-Kernel

marcoi

im seeing a similar thing in lastest version of XO (self built)
lspci showing more items the XO is showing for the host.
I just added a usbc card for example and its not showing up in XO.

marcoi

Just to add details about my box. Seems lspci is showing 20 items and xe/xo is only showing 12.
I left the device name in the second list to help show whats not showing up in xe vs lscpi

XE/XO list

 pci-id ( RO): 0000:c1:00.0
 pci-id ( RO): 0000:c2:00.0
 pci-id ( RO): 0000:c3:00.0
 pci-id ( RO): 0000:c4:00.0
 pci-id ( RO): 0000:c5:00.0
 pci-id ( RO): 0000:c5:00.1
 pci-id ( RO): 0000:c7:00.0
 pci-id ( RO): 0000:c7:00.1
 pci-id ( RO): 0000:c7:00.2
 pci-id ( RO): 0000:c7:00.4
 pci-id ( RO): 0000:c7:00.6
 pci-id ( RO): 0000:c7:00.7

VS lspci list

c1:00.0	SATA controller: JMicron Technology Corp. JMB58x AHCI SATA controller
c2:00.0	Non-Volatile memory controller: Samsung Electronics Co Ltd NVMe SSD Controller SM961/PM961/SM963
c3:00.0	Ethernet controller: Aquantia Corp. AQtion AQC113 NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G] (rev 03)
c4:00.0	Ethernet controller: Realtek Semiconductor Co., Ltd. Device 8126 (rev 01)
c5:00.0	VGA compatible controller: NVIDIA Corporation GK208 [GeForce GT 720] (rev a1)
c5:00.1	Audio device: NVIDIA Corporation GK208 HDMI/DP Audio Controller (rev a1)
c6:00.0	USB controller: Etron Technology, Inc. EJ168 USB 3.0 Host Controller (rev 01)
c7:00.0	Display controller: Advanced Micro Devices, Inc. [AMD/ATI] Device 150e (rev d1)
c7:00.1	Audio device: Advanced Micro Devices, Inc. [AMD/ATI] Rembrandt Radeon High Definition Audio Controller
c7:00.2	Encryption controller: Advanced Micro Devices, Inc. [AMD] Device 17e0
c7:00.4	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151e
c7:00.6	Audio device: Advanced Micro Devices, Inc. [AMD] Family 17h/19h HD Audio Controller
c7:00.7	Signal processing controller: Advanced Micro Devices, Inc. [AMD] Device 164a
c8:00.0	Non-Essential Instrumentation [1300]: Advanced Micro Devices, Inc. [AMD] Device 150d
c8:00.1	Signal processing controller: Advanced Micro Devices, Inc. [AMD] Device 17f0 (rev 10)
c9:00.0	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151f
c9:00.3	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151a
c9:00.4	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151b
c9:00.5	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151c
c9:00.6	USB controller: Advanced Micro Devices, Inc. [AMD] Device 151d

chicagomed

Just adding here from my other post---AMD card didn't not reproduce this issue but my Intel Arc card experience matches exactly what others have posted here about the LSPCI vs XE-Assignable / XOA list difference.

andSmv

@chicagomed If lspci shows the PCI device in its output we probably need to check if XAPI layer "sees" all this devices and correctly reports them to XO. Ping @Team-XAPI-Network

andriy.sultanov

@chicagomed Could you (and others with the issue) please post the output of lspci -mnn for the devices that are not shown in xe pci-list?

XAPI filters for PCI devices with classes 01XX, 02XX, and 03XX as a safety measure (better to be safe than sorry in avoiding passthrough of critical devices), but perhaps we could reasonably expand this filter.

marcoi

here my list - items c6, c8, c9 are not showing up.

00:00.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1507]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1507]"
00:00.2 "IOMMU [0806]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1508]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1508]"
00:01.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1509]" "" ""
00:01.1 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150a]" "" ""
00:01.2 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150a]" "" ""
00:02.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1509]" "" ""
00:02.1 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:02.2 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:02.4 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:02.5 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:03.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1509]" "" ""
00:03.1 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:03.2 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150b]" "" ""
00:08.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [1509]" "" ""
00:08.1 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150c]" "" ""
00:08.2 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150c]" "" ""
00:08.3 "PCI bridge [0604]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150c]" "" ""
00:14.0 "SMBus [0c05]" "Advanced Micro Devices, Inc. [AMD] [1022]" "FCH SMBus Controller [790b]" -r71 "Advanced Micro Devices, Inc. [AMD] [1022]" "FCH SMBus Controller [790b]"
00:14.3 "ISA bridge [0601]" "Advanced Micro Devices, Inc. [AMD] [1022]" "FCH LPC Bridge [790e]" -r51 "Advanced Micro Devices, Inc. [AMD] [1022]" "FCH LPC Bridge [790e]"
00:18.0 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16f8]" "" ""
00:18.1 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16f9]" "" ""
00:18.2 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16fa]" "" ""
00:18.3 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16fb]" "" ""
00:18.4 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16fc]" "" ""
00:18.5 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16fd]" "" ""
00:18.6 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16fe]" "" ""
00:18.7 "Host bridge [0600]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [16ff]" "" ""
c1:00.0 "SATA controller [0106]" "JMicron Technology Corp. [197b]" "JMB58x AHCI SATA controller [0585]" -p01 "JMicron Technology Corp. [197b]" "Device [0000]"
c2:00.0 "Non-Volatile memory controller [0108]" "Samsung Electronics Co Ltd [144d]" "NVMe SSD Controller SM961/PM961/SM963 [a804]" -p02 "Samsung Electronics Co Ltd [144d]" "SM963 2.5\" NVMe PCIe SSD [a801]"
c3:00.0 "Ethernet controller [0200]" "Aquantia Corp. [1d6a]" "AQtion AQC113 NBase-T/IEEE 802.3an Ethernet Controller [Antigua 10G] [04c0]" -r03 "Aquantia Corp. [1d6a]" "Device [0001]"
c4:00.0 "Ethernet controller [0200]" "Realtek Semiconductor Co., Ltd. [10ec]" "Device [8126]" -r01 "Realtek Semiconductor Co., Ltd. [10ec]" "Device [0123]"
c5:00.0 "VGA compatible controller [0300]" "NVIDIA Corporation [10de]" "GK208 [GeForce GT 720] [1286]" -ra1 "NVIDIA Corporation [10de]" "Device [1087]"
c5:00.1 "Audio device [0403]" "NVIDIA Corporation [10de]" "GK208 HDMI/DP Audio Controller [0e0f]" -ra1 "NVIDIA Corporation [10de]" "Device [1087]"
c6:00.0 "USB controller [0c03]" "Etron Technology, Inc. [1b6f]" "EJ168 USB 3.0 Host Controller [7023]" -r01 -p30 "Unknown vendor [7023]" "Device [1b6f]"
c7:00.0 "Display controller [0380]" "Advanced Micro Devices, Inc. [AMD/ATI] [1002]" "Device [150e]" -rd1 "Unknown vendor [1f4c]" "Device [b020]"
c7:00.1 "Audio device [0403]" "Advanced Micro Devices, Inc. [AMD/ATI] [1002]" "Rembrandt Radeon High Definition Audio Controller [1640]" "Unknown vendor [1f4c]" "Device [b020]"
c7:00.2 "Encryption controller [1080]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [17e0]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [17e0]"
c7:00.4 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151e]" -p30 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [15b9]"
c7:00.6 "Audio device [0403]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Family 17h/19h HD Audio Controller [15e3]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [d808]"
c7:00.7 "Signal processing controller [1180]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [164a]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [164a]"
c8:00.0 "Non-Essential Instrumentation [1300]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150d]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [150d]"
c8:00.1 "Signal processing controller [1180]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [17f0]" -r10 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [17f0]"
c9:00.0 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151f]" -p30 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [15b9]"
c9:00.3 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151a]" -p30 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151a]"
c9:00.4 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151b]" -p30 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151b]"
c9:00.5 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151c]" -p40 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151c]"
c9:00.6 "USB controller [0c03]" "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151d]" -p40 "Advanced Micro Devices, Inc. [AMD] [1022]" "Device [151d]"

marcoi

@andriy.sultanov is there a way to allow all devices (even if we blow up the system lol)

For example in the docs there a usb filter list you can edit
/etc/xensource/usb-policy.conf

anything similar for pcie? Can something be added with disclaimer you break it on you etc?
Maybe make it a command line option to disable the pci device filters for users that want to pass through special devices.

olivierlambert

@marcoi Right now it's hard coded. But we'll see what could be the best approach on this

marcoi

@olivierlambert thanks for the update.
and just to confirm, if a device is not showing up in xe list with uuid, there is no way to pass it to a VM correct?

olivierlambert

No, you can pass it anyway, it's just not doable via XO. But the CLI method should work

marcoi

@olivierlambert to confirm the steps
i can skip this step since it isnt showing up anyways

xe pci-disable-dom0-access uuid=<pci uuid>

then use

xe vm-param-set other-config:pci=0/0000:04:01.0 uuid=<vm uuid> to add it to vm

olivierlambert

That might work indeed. If it doesn't, you'll have to go via the old method:

/opt/xensource/libexec/xen-cmdline --set-dom0 "xen-pciback.hide=(0000:04:01.0)"

Please let us know (this way we could update the doc)

marcoi

@olivierlambert

xe vm-param-set other-config:pci=0/0000:c6:00.0 uuid=45d0f537-9076-b395-1fbd-850d2cc0cf68

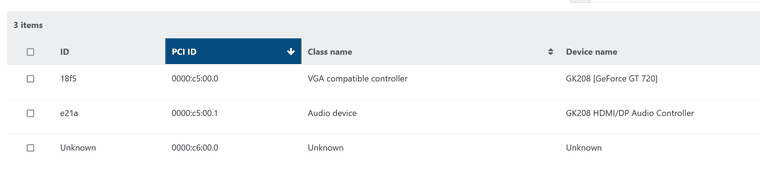

This command worked. I was able to pass through the usb and also pcie devices i can get to using XO.

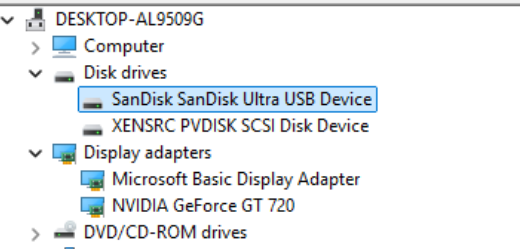

windows host showing usb drive plugged into usb3 card and graphics card.

olivierlambert

Perfect! It's just a matter of stuff hidden for some reasons, at least it doesn't cause any problem, which is what matters
