    Boot New VM to ISO in XO-Lite?

    Scheduled Pinned Locked Moved XO Lite
    29 Posts 5 Posters 1.2k Views 5 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • C Offline
      coolsport00 @olivierlambert
      last edited by coolsport00

      @olivierlambert There is nowhere in XO-Lite to be able to change the boot order. That is the issue. Lack of functionality for that.

      1 Reply Last reply Reply Quote 0
      • C Offline
        coolsport00 @olivierlambert
        last edited by

        @olivierlambert Greg, in my other forums post, confirmed this lack of functionality as well.

        C 1 Reply Last reply Reply Quote 0
        • C Offline
          coolsport00 @coolsport00
          last edited by coolsport00

          @olivierlambert - I just removed my UEFI-based VM and created BIOS-based one. It booted right up to the ISO. So it appears lack of functionality with UEFI booting to ISO. Not sure if that's a function of UEFI in general, or lack of feature set of XO-Lite. Well, may be both. Would be nice to have that boot order feature in XO-Lite, like in XO, which should take care of the issue with UEFI booting to ISO.

          1 Reply Last reply Reply Quote 0
          • G Greg_E referenced this topic on
          • P Offline
            ph7 @olivierlambert
            last edited by

            @olivierlambert

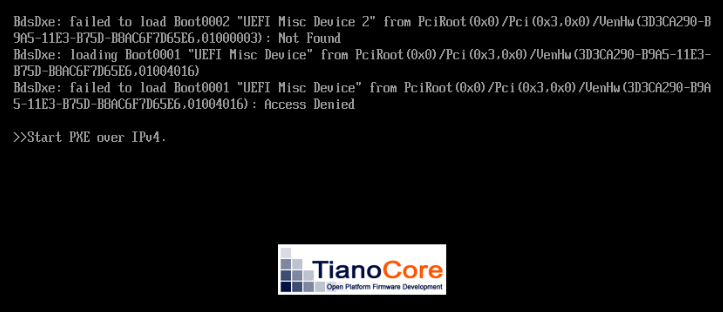

            I can confirm that a new built debian VM in XO Lite with Debian Bookworm 12 template with UEFI boot will end up with this.


            If I try to start it in XO5 it will have the same result
            But if I change it to BIOS in XO5, it will start.

            If I during the creation in XO-Lite change to BIOS it will start.

            1 Reply Last reply Reply Quote 0
            • olivierlambertO Online
              olivierlambert Vates 🪐 Co-Founder CEO
              last edited by

              Okay and what's the boot order by default of this template? When you create it in XO 5, same template, do you have the issue?

              P 1 Reply Last reply Reply Quote 0
              • P Offline
                ph7 @olivierlambert
                last edited by

                @olivierlambert
                (Fully updated xcp and xo ce 4dfd4)
                Default bootorder in 5 and Lite:

                Created by XO-Lite:
                (I had to check in XO5, didnt find it in Lite)

                Created by XO5:

                olivierlambertO 1 Reply Last reply Reply Quote 0
                • olivierlambertO Online
                  olivierlambert Vates 🪐 Co-Founder CEO @ph7
                  last edited by

                  @ph7 We cannot see if they are all enabled in the screenshot. Also, I'm not sure to get it. With XO5 "end to end", does the VM boots?

                  P 1 Reply Last reply Reply Quote 0
                  • P Offline
                    ph7 @olivierlambert
                    last edited by

                    @olivierlambert

                    Yes, They where all enabled but the clip was so wide I did cut it off.
                    The only thing I entered was the iso and changed to 2 cpu

                    New VM in xo5 with uefi

                    And starting fine in XO5

                    1 Reply Last reply Reply Quote 0
                    • olivierlambertO Online
                      olivierlambert Vates 🪐 Co-Founder CEO
                      last edited by

                      So there's something different in VM creation between the two that makes UEFI boot not working 🤔

                      Thanks for the feedback, we'll try to reproduce internally and if confirmed, fixing it

                      C P 2 Replies Last reply Reply Quote 0
                      • C Offline
                        coolsport00 @olivierlambert
                        last edited by

                        @olivierlambert Thank you for looking into it Olivier; and...not that you all have extra time on your hands... 😛 ...but if you could enable being able to configure Host networking in XO-Lite, I think that would be a semi-urgent feature to release as well. Thanks.

                        1 Reply Last reply Reply Quote 0
                        • P Offline
                          ph7 @olivierlambert
                          last edited by

                          @olivierlambert
                          When created with XO-Lite, secure boot is enabled but when created with XO5 secure boot is disabled.

                          XO-Lite:

                          XO 5

                          C 1 Reply Last reply Reply Quote 0
                          • C Offline
                            coolsport00 @ph7
                            last edited by coolsport00

                            @ph7 where are you seeing secure boot in XO-Lite? I don't even have that option 🤔 After creating a VM in XO-Lite, I see boot settings and Secure Boot is shown as Disabled
                            Screenshot 2025-08-29 at 11.53.30 AM.png

                            P 1 Reply Last reply Reply Quote 0
                            • P Offline
                              ph7 @coolsport00
                              last edited by

                              @coolsport00
                              I created the VM in Lite, then checked in XO5

                              C 1 Reply Last reply Reply Quote 0
                              • C Offline
                                coolsport00 @ph7
                                last edited by

                                @ph7 Ah, ok

                                P 1 Reply Last reply Reply Quote 0
                                • P Offline
                                  ph7 @coolsport00
                                  last edited by

                                  @coolsport00
                                  Here is a hint in xo 5 when the newly created vm is running.

                                  P 1 Reply Last reply Reply Quote 0
                                  • olivierlambertO Online
                                    olivierlambert Vates 🪐 Co-Founder CEO
                                    last edited by

                                    Are we still talking about the same template? VM config depends entirely on the template selected

                                    P 1 Reply Last reply Reply Quote 0
                                    • P Offline
                                      ph7 @olivierlambert
                                      last edited by

                                      @olivierlambert
                                      It is the same pool.


                                      P 1 Reply Last reply Reply Quote 0
                                      • P Offline
                                        ph7 @ph7
                                        last edited by

                                        The Alpine one is added from XOA

                                        1 Reply Last reply Reply Quote 0
                                        • P Offline
                                          ph7 @ph7
                                          last edited by

                                          said in Boot New VM to ISO in XO-Lite?:

                                          @coolsport00
                                          Here is a hint in xo 5 when the newly created vm is running.

                                          To be precise, The non working VM created in XO-Lite is not running, it is when it get stuck while trying to boot.

                                          1 Reply Last reply Reply Quote 0
                                          • MathieuRAM Offline
                                            MathieuRA Vates 🪐 XO Team
                                            last edited by

                                            Hello.
                                            I spotted a small bug in the XO-Lite system page: Secure boot was always showing Disabled I'll fix this issue soon.

                                            According to my tests, your VM isn't booting because Secure Boot is enabled, but your pool isn't configured for it.
                                            If I remember correctly, in XO 5, Secure Boot is disabled by default, but in XOLite, if your template sets "platform.secureboot" to true or auto, the VM will be created with Secure Boot enabled.
                                            Can you confirm that if you disable Secure Boot on your VM, it boots correctly?

                                            ping @lsouai-vates to plane the possibility to enable/disable secure boot in the XOLite/XO6 UI, and possibly transform auto to false if the pool isn't compatible. Or at least, as in XO 5, warn the user

                                            P 1 Reply Last reply Reply Quote 1
