Is supermicro IPMI data display planned?

sluflyer06

[{"name": "CPU Temp", "value": "37 degrees C", "event": "ok"}, {"name": "System Temp", "value": "30 degrees C", "event": "ok"}, {"name": "Peripheral Temp", "value": "46 degrees C", "event": "ok"}, {"name": "NIC Temp", "value": "59 degrees C", "event": "ok"}, {"name": "CPU_VRM0 Temp", "value": "43 degrees C", "event": "ok"}, {"name": "CPU_VRM1 Temp", "value": "34 degrees C", "event": "ok"}, {"name": "SOC_VRM Temp", "value": "44 degrees C", "event": "ok"}, {"name": "VDDIO_VRM Temp", "value": "48 degrees C", "event": "ok"}, {"name": "DIMMA~C Temp", "value": "45 degrees C", "event": "ok"}, {"name": "DIMME~G Temp", "value": "44 degrees C", "event": "ok"}, {"name": "MB 12V", "value": "12.08 Volts", "event": "ok"}, {"name": "MB 5VCC", "value": "5.10 Volts", "event": "ok"}, {"name": "MB 3.3VCC", "value": "3.35 Volts", "event": "ok"}, {"name": "VBAT", "value": "0x04", "event": "ok"}, {"name": "MB 5VSB", "value": "5.06 Volts", "event": "ok"}, {"name": "MB 3.3VSB", "value": "3.39 Volts", "event": "ok"}, {"name": "MB 1.8VSB", "value": "1.84 Volts", "event": "ok"}, {"name": "BMC 2.5V", "value": "2.47 Volts", "event": "ok"}, {"name": "BMC 1.8V", "value": "1.77 Volts", "event": "ok"}, {"name": "BMC 1.2V", "value": "1.19 Volts", "event": "ok"}, {"name": "BMC 1.0V", "value": "0.99 Volts", "event": "ok"}, {"name": "BMC 3.3VSB", "value": "3.28 Volts", "event": "ok"}, {"name": "CPU_SOC", "value": "1.22 Volts", "event": "ok"}, {"name": "CPU_VDDIO", "value": "1.12 Volts", "event": "ok"}, {"name": "FAN1", "value": "1960 RPM", "event": "ok"}, {"name": "FAN2", "value": "1960 RPM", "event": "ok"}, {"name": "FAN3", "value": "1960 RPM", "event": "ok"}, {"name": "FAN4", "value": "no reading", "event": "ns"}, {"name": "FANA", "value": "no reading", "event": "ns"}, {"name": "FANB", "value": "no reading", "event": "ns"}, {"name": "FANC", "value": "no reading", "event": "ns"}, {"name": "M2_SSD1 Temp", "value": "no reading", "event": "ns"}, {"name": "M2_SSD2 Temp", "value": "no reading", "event": "ns"}, {"name": "Chassis Intru", "value": "0x00", "event": "ok"}, {"name": "NVMe_SSD1 Temp", "value": "no reading", "event": "ns"}, {"name": "NVMe_SSD2 Temp", "value": "no reading", "event": "ns"}, {"name": "GPU4 Temp", "value": "51 degrees C", "event": "ok"}, {"name": "GPU6 Temp", "value": "35 degrees C", "event": "ok"}]

This is on a H13SRA-TF board.

acp

@olivierlambert From a SuperMicro X10DRH-ct

[{"name": "CPU1 Temp", "value": "45 degrees C", "event": "ok"}, {"name": "CPU2 Temp", "value": "51 degrees C", "event": "ok"}, {"name": "PCH Temp", "value": "41 degrees C", "event": "ok"}, {"name": "System Temp", "value": "29 degrees C", "event": "ok"}, {"name": "Peripheral Temp", "value": "43 degrees C", "event": "ok"}, {"name": "MB_10G Temp", "value": "52 degrees C", "event": "ok"}, {"name": "Vcpu1VRM Temp", "value": "35 degrees C", "event": "ok"}, {"name": "Vcpu2VRM Temp", "value": "46 degrees C", "event": "ok"}, {"name": "VmemABVRM Temp", "value": "32 degrees C", "event": "ok"}, {"name": "VmemCDVRM Temp", "value": "35 degrees C", "event": "ok"}, {"name": "VmemEFVRM Temp", "value": "35 degrees C", "event": "ok"}, {"name": "VmemGHVRM Temp", "value": "36 degrees C", "event": "ok"}, {"name": "P1-DIMMA1 Temp", "value": "31 degrees C", "event": "ok"}, {"name": "P1-DIMMA2 Temp", "value": "no reading", "event": "ns"}, {"name": "P1-DIMMB1 Temp", "value": "29 degrees C", "event": "ok"}, {"name": "P1-DIMMB2 Temp", "value": "no reading", "event": "ns"}, {"name": "P1-DIMMC1 Temp", "value": "no reading", "event": "ns"}, {"name": "P1-DIMMC2 Temp", "value": "no reading", "event": "ns"}, {"name": "P1-DIMMD1 Temp", "value": "no reading", "event": "ns"}, {"name": "P1-DIMMD2 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMME1 Temp", "value": "32 degrees C", "event": "ok"}, {"name": "P2-DIMME2 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMMF1 Temp", "value": "33 degrees C", "event": "ok"}, {"name": "P2-DIMMF2 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMMG1 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMMG2 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMMH1 Temp", "value": "no reading", "event": "ns"}, {"name": "P2-DIMMH2 Temp", "value": "no reading", "event": "ns"}, {"name": "FAN1", "value": "3400 RPM", "event": "ok"}, {"name": "FAN2", "value": "no reading", "event": "ns"}, {"name": "FAN3", "value": "3200 RPM", "event": "ok"}, {"name": "FAN4", "value": "1800 RPM", "event": "ok"}, {"name": "FAN5", "value": "no reading", "event": "ns"}, {"name": "FAN6", "value": "1700 RPM", "event": "ok"}, {"name": "FANA", "value": "3500 RPM", "event": "ok"}, {"name": "FANB", "value": "no reading", "event": "ns"}, {"name": "12V", "value": "12 Volts", "event": "ok"}, {"name": "5VCC", "value": "5.03 Volts", "event": "ok"}, {"name": "3.3VCC", "value": "3.35 Volts", "event": "ok"}, {"name": "VBAT", "value": "2.97 Volts", "event": "ok"}, {"name": "Vcpu1", "value": "1.80 Volts", "event": "ok"}, {"name": "Vcpu2", "value": "1.79 Volts", "event": "ok"}, {"name": "VDIMMAB", "value": "1.20 Volts", "event": "ok"}, {"name": "VDIMMCD", "value": "1.20 Volts", "event": "ok"}, {"name": "VDIMMEF", "value": "1.20 Volts", "event": "ok"}, {"name": "VDIMMGH", "value": "1.20 Volts", "event": "ok"}, {"name": "5VSB", "value": "4.92 Volts", "event": "ok"}, {"name": "3.3VSB", "value": "3.30 Volts", "event": "ok"}, {"name": "1.5V PCH", "value": "1.51 Volts", "event": "ok"}, {"name": "1.2V BMC", "value": "1.22 Volts", "event": "ok"}, {"name": "1.05V PCH", "value": "1.05 Volts", "event": "ok"}, {"name": "Chassis Intru", "value": "0x01", "event": "ok"}, {"name": "PS1 Status", "value": "0x01", "event": "ok"}, {"name": "MB/AOM_SAS Te", "value": "48 degrees C", "event": "ok"}, {"name": "HDD Status", "value": "no reading", "event": "ns"}]

Pilow

@olivierlambert HPE DL360 G11
didnt manage to markdown

[{"name": "UID", "value": "0x00", "event": "ok"}, {"name": "SysHealth_Stat", "value": "0x00", "event": "ok"}, {"name": "01-Inlet Ambient", "value": "18 degrees C", "event": "ok"}, {"name": "02-CPU 1 PkgTmp", "value": "63 degrees C", "event": "ok"}, {"name": "03-CPU 2 PkgTmp", "value": "64 degrees C", "event": "ok"}, {"name": "04-P1 DIMM 1-8", "value": "43 degrees C", "event": "ok"}, {"name": "05-P1 PMM 1-8", "value": "disabled", "event": "ns"}, {"name": "06-P1 DIMM 9-16", "value": "43 degrees C", "event": "ok"}, {"name": "07-P1 PMM 9-16", "value": "disabled", "event": "ns"}, {"name": "08-P2 DIMM 1-8", "value": "44 degrees C", "event": "ok"}, {"name": "09-P2 PMM 1-8", "value": "disabled", "event": "ns"}, {"name": "10-P2 DIMM 9-16", "value": "44 degrees C", "event": "ok"}, {"name": "11-P2 PMM 9-16", "value": "disabled", "event": "ns"}, {"name": "12-VR P1", "value": "53 degrees C", "event": "ok"}, {"name": "13-VR P2", "value": "54 degrees C", "event": "ok"}, {"name": "14-HD Max", "value": "disabled", "event": "ns"}, {"name": "15-AHCI HD Max", "value": "disabled", "event": "ns"}, {"name": "16-Exp Bay Drive", "value": "disabled", "event": "ns"}, {"name": "18-Stor Batt", "value": "disabled", "event": "ns"}, {"name": "21-Chipset", "value": "56 degrees C", "event": "ok"}, {"name": "22-BMC", "value": "72 degrees C", "event": "ok"}, {"name": "23-P/S 1 Inlet", "value": "33 degrees C", "event": "ok"}, {"name": "24-P/S 1", "value": "40 degrees C", "event": "ok"}, {"name": "25-P/S 2 Inlet", "value": "42 degrees C", "event": "ok"}, {"name": "26-P/S 2", "value": "43 degrees C", "event": "ok"}, {"name": "28-OCP 1", "value": "disabled", "event": "ns"}, {"name": "30-OCP 2", "value": "disabled", "event": "ns"}, {"name": "36-PCI 3", "value": "disabled", "event": "ns"}, {"name": "49-Board Inlet", "value": "26 degrees C", "event": "ok"}, {"name": "50-Sys Exhaust 2", "value": "47 degrees C", "event": "ok"}, {"name": "51-Battery Zone", "value": "44 degrees C", "event": "ok"}, {"name": "52-Sys Exhaust 1", "value": "48 degrees C", "event": "ok"}, {"name": "53-P/S 2 Zone", "value": "46 degrees C", "event": "ok"}, {"name": "Fan 1", "value": "0x00", "event": "ok"}, {"name": "Fan 1 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 1 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 2", "value": "0x00", "event": "ok"}, {"name": "Fan 2 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 2 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 3", "value": "0x00", "event": "ok"}, {"name": "Fan 3 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 3 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 4", "value": "0x00", "event": "ok"}, {"name": "Fan 4 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 4 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 5", "value": "0x00", "event": "ok"}, {"name": "Fan 5 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 5 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 6", "value": "0x00", "event": "ok"}, {"name": "Fan 6 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 6 Presence", "value": "0x00", "event": "ok"}, {"name": "Fan 7", "value": "0x00", "event": "ok"}, {"name": "Fan 7 DutyCycle", "value": "17.36 percent", "event": "ok"}, {"name": "Fan 7 Presence", "value": "0x00", "event": "ok"}, {"name": "Power Supply 1", "value": "0x00", "event": "ok"}, {"name": "PS 1 Input", "value": "180 Watts", "event": "ok"}, {"name": "Power Supply 2", "value": "0x00", "event": "ok"}, {"name": "PS 2 Input", "value": "160 Watts", "event": "ok"}, {"name": "Power Meter", "value": "340 Watts", "event": "ok"}, {"name": "Fans", "value": "0x00", "event": "ok"}, {"name": "Power Supplies", "value": "0x00", "event": "ok"}, {"name": "Memory Status", "value": "0x00", "event": "ok"}, {"name": "Megacell Status", "value": "Not Readable", "event": "ns"}, {"name": "Intrusion", "value": "Not Readable", "event": "ns"}, {"name": "CPU Utilization", "value": "2 unspecified", "event": "ok"}, {"name": "PS 1 Output", "value": "160 Watts", "event": "ok"}, {"name": "PS_Volt_Out_01", "value": "12 Volts", "event": "ok"}, {"name": "PS_Volt_In_01", "value": "228 Volts", "event": "ok"}, {"name": "PS_Curr_Out_01", "value": "14 Amps", "event": "ok"}, {"name": "PS_Curr_In_01", "value": "0.70 Amps", "event": "ok"}, {"name": "PS 2 Output", "value": "150 Watts", "event": "ok"}, {"name": "PS_Volt_Out_02", "value": "12 Volts", "event": "ok"}, {"name": "PS_Volt_In_02", "value": "227 Volts", "event": "ok"}, {"name": "PS_Curr_Out_02", "value": "13 Amps", "event": "ok"}, {"name": "PS_Curr_In_02", "value": "0.70 Amps", "event": "ok"}, {"name": "17.1-ExpBayBoot-", "value": "41 degrees C", "event": "ok"}, {"name": "17.2-ExpBayBoot-", "value": "26 degrees C", "event": "ok"}, {"name": "32.1-PCI 1-I/O m", "value": "84 degrees C", "event": "ok"}, {"name": "32.2-PCI 1-I/O m", "value": "57 degrees C", "event": "ok"}, {"name": "32.3-PCI 1-I/O m", "value": "59 degrees C", "event": "ok"}, {"name": "34.1-PCI 2-I/O m", "value": "81 degrees C", "event": "ok"}, {"name": "34.2-PCI 2-I/O m", "value": "56 degrees C", "event": "ok"}, {"name": "34.3-PCI 2-I/O m", "value": "57 degrees C", "event": "ok"}, {"name": "NIC_Link_14P1", "value": "Not Readable", "event": "ns"}, {"name": "NIC_Link_14P2", "value": "Not Readable", "event": "ns"}, {"name": "NIC_Link_14P3", "value": "Not Readable", "event": "ns"}, {"name": "NIC_Link_14P4", "value": "Not Readable", "event": "ns"}, {"name": "NIC_Link_01P1", "value": "0x00", "event": "ok"}, {"name": "NIC_Link_01P2", "value": "0x00", "event": "ok"}, {"name": "NIC_Link_02P1", "value": "0x00", "event": "ok"}, {"name": "NIC_Link_02P2", "value": "0x00", "event": "ok"}, {"name": "CPU_Stat_C1", "value": "0x00", "event": "ok"}, {"name": "CPU_Stat_C2", "value": "0x00", "event": "ok"}]

olivierlambert

For Supermicro, you can use the following branch olt-supermicro-ipmi and tell me if you have anything displayed in the host view.

olivierlambert

I'm afraid those data aren't complete enough for SuperMicro: I have no BMC info (no IP address), no inlet or outlet temp. It's probably because it's not a full chassis but just info from the motherboard?

acp

@olivierlambert It a Supermicro MB in a SuperMicro chassis. So I have data from the power supply.

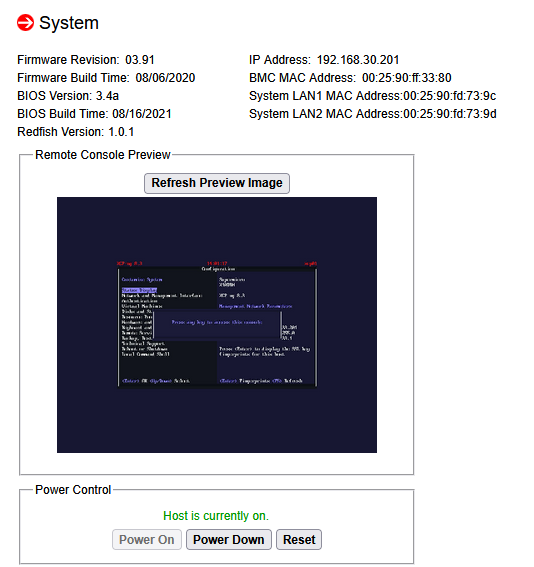

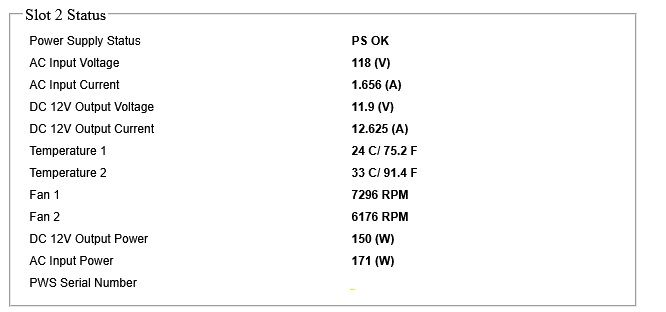

Screenshot 2025-10-31 150049.png Screenshot 2025-10-31 150247.jpg

acp

olivierlambert

Yes, sorry I have the BMC IP, but not inlet nor outlet temp, I will check why you don't have total power.

edit: in the sensor data you sent, I don't have any total power available

acp

@olivierlambert said in Is supermicro IPMI data display planned?:

Yes, sorry I have the BMC IP, but not inlet nor outlet temp, I will check why you don't have total power.

edit: in the sensor data you sent, I don't have any total power available

found this:

[15:34 xcp01 ~]# ipmitool dcmi power reading

    Instantaneous power reading:                   166 Watts
    Minimum during sampling period:                121 Watts
    Maximum during sampling period:                259 Watts
    Average power reading over sample period:      156 Watts
    IPMI timestamp:                           Fri Oct 31 19:34:59 2025
    Sampling period:                          01678461 Seconds.
    Power reading state is:                   activated

olivierlambert

But but nothing with the current XAPI plugin, so that might need to modify it.

sluflyer06

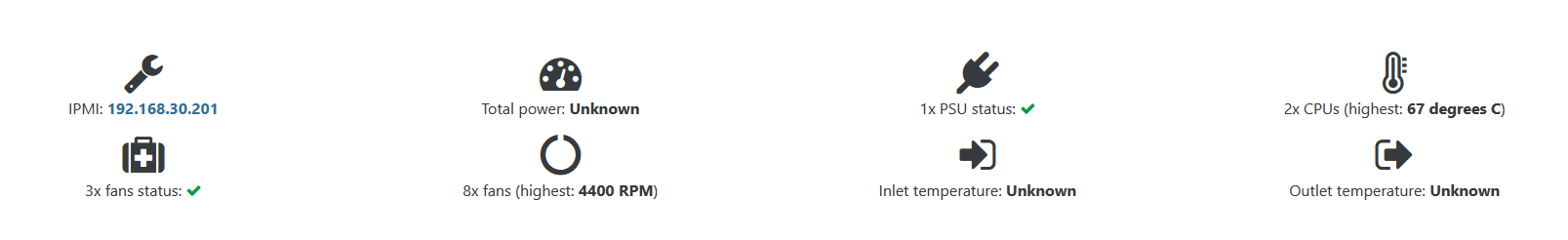

Screenshot 2025-11-01 at 9.47.20 PM.png

Weird it is not showing CPU temperatures, that was shown in the test command. (H13SRA-TF super micro board)

olivierlambert

Do you have any logs in the browser console or in XO server output? Maybe a parsing error

acp

@olivierlambert Which log file do you want?

Forza

In what page in XOA is this? What plugin is required? Do we need to be on 'latest' instead of 'release' channel?

acp

@Forza It's another branch of XO

olt-supermicro-ipmi

Forza

@acp oh, that's why i can't find it.

olivierlambert

xo-server output directly or browser logs if you can see anything

sluflyer06

@olivierlambert

computed "cpuHighestTemp" thrown TypeError: r.forEach is not a function
    cpuHighestTemp tab-general.js:45
    get factory.js:219
    o factory.js:112
    get factory.js:50
    default tab-general.js:80
    React 36
    _unsubscribes add-subscriptions.js:35
    p index.js:269
    Lodash 4
    p index.js:264

olivierlambert

Thanks, this is useful

Can you display the output from the plugin, on XCP-ng, like:

xe host-call-plugin host-uuid=<uuid> plugin=ipmitool.py fn=get_all_sensors

sluflyer06

[{"name": "CPU Temp", "value": "39 degrees C", "event": "ok"}, {"name": "System Temp", "value": "31 degrees C", "event": "ok"}, {"name": "Peripheral Temp", "value": "46 degrees C", "event": "ok"}, {"name": "NIC Temp", "value": "59 degrees C", "event": "ok"}, {"name": "CPU_VRM0 Temp", "value": "43 degrees C", "event": "ok"}, {"name": "CPU_VRM1 Temp", "value": "34 degrees C", "event": "ok"}, {"name": "SOC_VRM Temp", "value": "44 degrees C", "event": "ok"}, {"name": "VDDIO_VRM Temp", "value": "48 degrees C", "event": "ok"}, {"name": "DIMMA~C Temp", "value": "45 degrees C", "event": "ok"}, {"name": "DIMME~G Temp", "value": "44 degrees C", "event": "ok"}, {"name": "MB 12V", "value": "12.08 Volts", "event": "ok"}, {"name": "MB 5VCC", "value": "5.10 Volts", "event": "ok"}, {"name": "MB 3.3VCC", "value": "3.35 Volts", "event": "ok"}, {"name": "VBAT", "value": "0x04", "event": "ok"}, {"name": "MB 5VSB", "value": "5.06 Volts", "event": "ok"}, {"name": "MB 3.3VSB", "value": "3.39 Volts", "event": "ok"}, {"name": "MB 1.8VSB", "value": "1.84 Volts", "event": "ok"}, {"name": "BMC 2.5V", "value": "2.47 Volts", "event": "ok"}, {"name": "BMC 1.8V", "value": "1.77 Volts", "event": "ok"}, {"name": "BMC 1.2V", "value": "1.19 Volts", "event": "ok"}, {"name": "BMC 1.0V", "value": "0.99 Volts", "event": "ok"}, {"name": "BMC 3.3VSB", "value": "3.28 Volts", "event": "ok"}, {"name": "CPU_SOC", "value": "1.22 Volts", "event": "ok"}, {"name": "CPU_VDDIO", "value": "1.12 Volts", "event": "ok"}, {"name": "FAN1", "value": "2100 RPM", "event": "ok"}, {"name": "FAN2", "value": "1960 RPM", "event": "ok"}, {"name": "FAN3", "value": "2100 RPM", "event": "ok"}, {"name": "FAN4", "value": "no reading", "event": "ns"}, {"name": "FANA", "value": "no reading", "event": "ns"}, {"name": "FANB", "value": "no reading", "event": "ns"}, {"name": "FANC", "value": "no reading", "event": "ns"}, {"name": "M2_SSD1 Temp", "value": "no reading", "event": "ns"}, {"name": "M2_SSD2 Temp", "value": "no reading", "event": "ns"}, {"name": "Chassis Intru", "value": "0x00", "event": "ok"}, {"name": "NVMe_SSD1 Temp", "value": "no reading", "event": "ns"}, {"name": "NVMe_SSD2 Temp", "value": "no reading", "event": "ns"}, {"name": "GPU4 Temp", "value": "49 degrees C", "event": "ok"}, {"name": "GPU6 Temp", "value": "34 degrees C", "event": "ok"}]
