    Backup fails with "Body Timeout Error", "all targets have failed, step: writer.run()"

    Scheduled Pinned Locked Moved Unsolved Backup
    97 Posts 20 Posters 11.1k Views 20 Watching
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • christopher-petzelC Offline
      christopher-petzel
      last edited by

      @poddingue Maybe this log will help @pierrebrunet . I've been having the Body Timeout Error for a couple of weeks on Metadata/Config backups. I'm using XO from sources. The problem started after upgrading to commit 63f8d. I was previously at commit e6443. The errors will occur for one or more hosts, and which host(s) has the error seems to be random. The error will occur for hosts which have VMs and for hosts that have no VMs. Attached is this morning's xensource.log from 00:10 when the backup started. The backup ends at 00:15 but I've included log data through 00:20. xensource-truncated.log.txt

      I have reverted to a snapshot of XO running at commit e6443 and executed multiple Metadata/Config backups without any problem.

      J 1 Reply Last reply Reply Quote 1
      • J Offline
        JB @christopher-petzel
        last edited by

        @christopher-petzel Thanks!

        1 Reply Last reply Reply Quote 0
        • M Offline
          MajorP93
          last edited by

          Hello,

          the issue is back on my end.
          Pool and metadata backup failed on all remotes due to "body timeout error".


          Attached please find full backup log:
          https://paste.vates.tech/?f781d8cb757e56b1#8MN4cyjHhkWKzhhvvggckf8mqjT9gxDY6t4vkSVQcWUY

          I can confirm what @christopher-petzel said. Before commit 63f8d got pushed this issue did not occur.

          I am currently running commit 1d82c (feat: release 6.6.2).

          Best regards

          1 Reply Last reply Reply Quote 1
          • olivierlambertO Offline
            olivierlambert Vates 🪐 Co-Founder CEO
            last edited by

            Hi! Can you try to replicate on the latest commit?

            J M 2 Replies Last reply Reply Quote 0
            • J Offline
              JB @olivierlambert
              last edited by

              @olivierlambert commit 59306backup-metadados.jpg

              florentF 1 Reply Last reply Reply Quote 1
              • florentF Offline
                florent Vates 🪐 XO Team @JB
                last edited by

                @JB this looks like an issue while reading the export part. Did you configure a default backup network in the pool ?
                is there any firewall/sdn controller that can filter out some reading ?

                note that we have removed several point that where hiding some errors this month.

                J 2 Replies Last reply Reply Quote 1
                • J Offline
                  JB @florent
                  last edited by

                  @florent Between one error and another, the backup sometimes succeeds.backup-metadados2.jpg

                  1 Reply Last reply Reply Quote 1
                  • J Offline
                    JB @florent
                    last edited by

                    @florent backup-metadados3.jpg

                    florentF 1 Reply Last reply Reply Quote 1
                    • poddingueP poddingue marked this topic as a question
                    • florentF Offline
                      florent Vates 🪐 XO Team @JB
                      last edited by

                      @JB this really looks like a network issue

                      are the host/xoa remotes ?

                      J 1 Reply Last reply Reply Quote 0
                      • J Offline
                        JB @florent
                        last edited by

                        @florent hi! Hosts/XOA on the same 192.168.0.x network.

                        J 1 Reply Last reply Reply Quote 0
                        • J Offline
                          JB @JB
                          last edited by


                          1 Reply Last reply Reply Quote 0
                          • A Offline
                            abudef
                            last edited by

                            Hi,
                            for several weeks, since 23 June 2026 (see below), I have been experiencing the same issue. XO (from source; daily updated) is running as a VM on the host (updated on the day or day + 1 the patches were released) being backed up.

                            result
name	"BodyTimeoutError"
code	"UND_ERR_BODY_TIMEOUT"
message	"Body Timeout Error"
stack	"BodyTimeoutError: Body Timeout Error\n    at FastTimer.onParserTimeout [as _onTimeout] (/opt/xo/xo-builds/xen-orchestra-202607312004/node_modules/undici/lib/dispatcher/client-h1.js:688:28)\n    at Timeout.onTick [as _onTimeout] (/opt/xo/xo-builds/xen-orchestra-202607312004/node_modules/undici/lib/util/timers.js:162:13)\n    at listOnTimeout (node:internal/timers:605:17)\n    at processTimers (node:internal/timers:541:7)"

                            Configuration	2026-07-31 20:22	2026-07-31 20:22	a few seconds
Configuration	2026-07-31 20:16	2026-07-31 20:21	5 minutes
Configuration	2026-07-31 20:09	2026-07-31 20:14	5 minutes
Configuration	2026-07-31 19:50	2026-07-31 19:55	5 minutes
Configuration	2026-07-30 20:53	2026-07-30 20:53	a few seconds
Configuration	2026-07-30 19:50	2026-07-30 19:50	a few seconds
Configuration	2026-07-29 19:50	2026-07-29 19:50	a few seconds
Configuration	2026-07-28 20:05	2026-07-28 20:05	a few seconds
Configuration	2026-07-28 19:50	2026-07-28 19:55	5 minutes
Configuration	2026-07-27 19:50	2026-07-27 19:50	a few seconds
Configuration	2026-07-26 20:49	2026-07-26 20:49	a few seconds
Configuration	2026-07-26 19:50	2026-07-26 19:55	5 minutes
Configuration	2026-07-25 19:50	2026-07-25 19:50	a few seconds
Configuration	2026-07-24 19:50	2026-07-24 19:50	a few seconds
Configuration	2026-07-23 20:48	2026-07-23 20:48	a few seconds
Configuration	2026-07-23 19:50	2026-07-23 19:55	5 minutes
Configuration	2026-07-22 19:50	2026-07-22 19:50	a few seconds
Configuration	2026-07-21 19:50	2026-07-21 19:50	a few seconds
Configuration	2026-07-20 19:50	2026-07-20 19:50	a few seconds
Configuration	2026-07-19 19:50	2026-07-19 19:50	a few seconds
Configuration	2026-07-19 07:47	2026-07-19 07:47	a few seconds
Configuration	2026-07-18 19:50	2026-07-18 19:50	a few seconds
Configuration	2026-07-17 19:50	2026-07-17 19:50	a few seconds
Configuration	2026-07-16 19:50	2026-07-16 19:50	a few seconds
Configuration	2026-07-15 19:50	2026-07-15 19:50	a few seconds
Configuration	2026-07-14 19:50	2026-07-14 19:55	6 minutes
Configuration	2026-07-13 23:03	2026-07-13 23:03	a few seconds
Configuration	2026-07-13 19:50	2026-07-13 19:55	5 minutes
Configuration	2026-07-12 19:50	2026-07-12 19:50	a few seconds
Configuration	2026-07-11 19:50	2026-07-11 19:50	a few seconds
Configuration	2026-07-10 19:50	2026-07-10 19:50	a few seconds
Configuration	2026-07-09 19:50	2026-07-09 19:55	5 minutes
Configuration	2026-07-08 19:50	2026-07-08 19:50	a few seconds
Configuration	2026-07-07 19:50	2026-07-07 19:55	5 minutes
Configuration	2026-07-06 19:50	2026-07-06 19:50	a few seconds
Configuration	2026-07-06 13:34	2026-07-06 13:34	a few seconds
Configuration	2026-07-05 19:50	2026-07-05 19:55	6 minutes
Configuration	2026-07-04 19:50	2026-07-04 19:50	a few seconds
Configuration	2026-07-03 19:50	2026-07-03 19:50	a few seconds
Configuration	2026-07-02 19:50	2026-07-02 19:50	a few seconds
Configuration	2026-07-01 19:50	2026-07-01 19:50	a few seconds
Configuration	2026-07-01 06:28	2026-07-01 06:28	a few seconds
Configuration	2026-07-01 00:52	2026-07-01 00:57	5 minutes
Configuration	2026-06-30 19:50	2026-06-30 19:55	5 minutes
Configuration	2026-06-29 20:23	2026-06-29 20:23	a few seconds
Configuration	2026-06-29 19:50	2026-06-29 19:55	5 minutes
Configuration	2026-06-28 19:50	2026-06-28 19:50	a few seconds
Configuration	2026-06-27 19:50	2026-06-27 19:50	a few seconds
Configuration	2026-06-26 19:50	2026-06-26 19:50	a few seconds
Configuration	2026-06-25 19:50	2026-06-25 19:50	a few seconds
Configuration	2026-06-24 19:50	2026-06-24 19:50	a few seconds
Configuration	2026-06-24 07:03	2026-06-24 07:03	a few seconds
Configuration	2026-06-23 19:50	2026-06-23 19:55	5 minutes
                            1 Reply Last reply Reply Quote 0
                            • acebmxerA Offline
                              acebmxer
                              last edited by acebmxer

                              Looking threw the backup logs at work and it seems i might be having a similar issue with only one of my pools and it does not happen all the time....

                              Dates of errors... Each time if I restarted the tool stack for host 1 on the effected pool the follow run of the job would be successful until one day it fails again. Let me know if you would like for me to open a support tunel.
                              7/30/26
                              7/25/26
                              7/24/26

                               },
  "id": "1784976796895",
  "jobId": "42b76839-453e-4486-83e7-d736d8625ce5",
  "jobName": "Tilton Pool Backup",
  "message": "backup",
  "proxyId": "9d22fb88-8bdd-44d3-a3a3-9ff5401f95df",
  "scheduleId": "828b5e60-4302-455c-94f1-479a8001f955",
  "start": 1784976796895,
  "status": "failure",
  "tasks": [
    {
      "id": "0ms093lzi-tuc7iks1oqp",
      "start": 1784976800526,
      "status": "success",
      "tasks": [
        {
          "id": "0ms093lzj-fo91s5yb7xv",
          "start": 1784976800527,
          "status": "success",
          "end": 1784976800603,
          "message": "Starting XO metadata backup for the remote (3022703c-5029-4ac3-bda1-3a76c6634a39). (42b76839-453e-4486-83e7-d736d8625ce5)",
          "data": {
            "id": "3022703c-5029-4ac3-bda1-3a76c6634a39",
            "type": "remote"
          }
        }
      ],
      "end": 1784976800603,
      "message": "Starting XO metadata backup. (42b76839-453e-4486-83e7-d736d8625ce5)",
      "data": {
        "type": "xo"
      }
    },
    {
      "id": "0ms093lzn-gw1xvnk515",
      "start": 1784976800531,
      "status": "failure",
      "tasks": [
        {
          "id": "0ms093m09-e5tj4brl4hh",
          "start": 1784976800553,
          "status": "failure",
          "end": 1784977100916,
          "result": {
            "name": "BodyTimeoutError",
            "code": "UND_ERR_BODY_TIMEOUT",
            "message": "Body Timeout Error",
            "stack": "BodyTimeoutError: Body Timeout Error\n    at FastTimer.onParserTimeout [as _onTimeout] (/usr/local/lib/node_modules/@xen-orchestra/proxy/node_modules/undici/lib/dispatcher/client-h1.js:702:28)\n    at Timeout.onTick [as _onTimeout] (/usr/local/lib/node_modules/@xen-orchestra/proxy/node_modules/undici/lib/util/timers.js:162:13)\n    at listOnTimeout (node:internal/timers:585:17)\n    at process.processTimers (node:internal/timers:521:7)"
          },
          "message": "Starting metadata backup for the pool (64466023-8ef0-f5de-54ed-57e30eca644b) for the remote (3022703c-5029-4ac3-bda1-3a76c6634a39). (42b76839-453e-4486-83e7-d736d8625ce5)",
          "data": {
            "id": "3022703c-5029-4ac3-bda1-3a76c6634a39",
            "type": "remote",
            "progress": 0
          }
        }
      ],
      "end": 1784977100917,
                              1 Reply Last reply Reply Quote 0
                              • christopher-petzelC Offline
                                christopher-petzel
                                last edited by christopher-petzel

                                @florent suggesting this looks like a network issue, I took a look at my XO's server's syslog and found the error when this occurs.

                                2026-07-31T00:10:00.428083-04:00 mis-26-svr xo-server[1298]: 2026-07-31T04:10:00.427Z xo:xo-server ERROR uncaught exception {
2026-07-31T00:10:00.428186-04:00 mis-26-svr xo-server[1298]:   error: AssertionError [ERR_ASSERTION]: The expression evaluated to a falsy value:
2026-07-31T00:10:00.428262-04:00 mis-26-svr xo-server[1298]:
2026-07-31T00:10:00.428309-04:00 mis-26-svr xo-server[1298]:     assert(!this.paused)
2026-07-31T00:10:00.428341-04:00 mis-26-svr xo-server[1298]:
2026-07-31T00:10:00.428391-04:00 mis-26-svr xo-server[1298]:       at Parser.finish (/opt/xo/xo-builds/xen-orchestra-202607200851/node_modules/undici/lib/dispatcher/client-h1.js:302:5)
2026-07-31T00:10:00.428414-04:00 mis-26-svr xo-server[1298]:       at TLSSocket.<anonymous> (/opt/xo/xo-builds/xen-orchestra-202607200851/node_modules/undici/lib/dispatcher/client-h1.js:741:32)
2026-07-31T00:10:00.428434-04:00 mis-26-svr xo-server[1298]:       at TLSSocket.emit (node:events:521:24)
2026-07-31T00:10:00.428478-04:00 mis-26-svr xo-server[1298]:       at TLSSocket.patchedEmit [as emit] (/opt/xo/xo-builds/xen-orchestra-202607200851/@xen-orchestra/log/configure.js:52:17)
2026-07-31T00:10:00.428508-04:00 mis-26-svr xo-server[1298]:       at endReadableNT (node:internal/streams/readable:1729:12)
2026-07-31T00:10:00.428525-04:00 mis-26-svr xo-server[1298]:       at processTicksAndRejections (node:internal/process/task_queues:90:21) {
2026-07-31T00:10:00.428549-04:00 mis-26-svr xo-server[1298]:     generatedMessage: true,
2026-07-31T00:10:00.428567-04:00 mis-26-svr xo-server[1298]:     code: 'ERR_ASSERTION',
2026-07-31T00:10:00.428582-04:00 mis-26-svr xo-server[1298]:     actual: false,
2026-07-31T00:10:00.428599-04:00 mis-26-svr xo-server[1298]:     expected: true,
2026-07-31T00:10:00.428614-04:00 mis-26-svr xo-server[1298]:     operator: '==',
2026-07-31T00:10:00.428628-04:00 mis-26-svr xo-server[1298]:     diff: 'simple'
2026-07-31T00:10:00.428642-04:00 mis-26-svr xo-server[1298]:   }
2026-07-31T00:10:00.428659-04:00 mis-26-svr xo-server[1298]: }

                                So it looks like xo-server is dying, could it be the module undici that the problem here? Keep in mind that 13 other instances of xo-server performed the backup without a problem at the exact same time. Some days this never happens, some days it could be 4 instances of xo-server that die the same way in executing the backup.

                                I think it's also important to note that the instance of xo-server dying happens immediately upon the backup being started at 10 minutes after midnight. I would think that if the problem were the network itself, that there would be some timeout period before causing the xo-server instance to crash.

                                To answer a question asked of @jb , this is a local XCP-ng management network and there are no other backups occurring at 00:10.

                                poddingueP J 2 Replies Last reply Reply Quote 0
                                • poddingueP Offline
                                  poddingue Vates 🪐 @christopher-petzel
                                  last edited by

                                  Trying to pull the last few posts together, because there is a pattern I keep staring at. 🤔
                                  Every failed run in @JB's screenshots lasts exactly 5 minutes while the successful ones finish in seconds, and @abudef's history going back to 23 June shows the same 5-minute wall.
                                  That reads to me like a fixed timeout firing rather than a merely slow transfer, though I could be wrong about which one. 🤷
                                  @christopher-petzel's syslog looks like a different animal, since assert(!this.paused) in undici's Parser.finish is xo-server crashing outright at job start while 13 other instances backed up fine the same minute. The only knob I can find written down is httpInactivityTimeout at https://docs.xen-orchestra.com/xo5/backup_troubleshooting#error-http-connection-has-timed-out, but that one sits on the XAPI GET path, and I do not know whether it touches pool metadata jobs at all. @florent, does the 5-minute signature change anything on your side?

                                  bogikornelB J 2 Replies Last reply Reply Quote 0
                                  • bogikornelB Offline
                                    bogikornel @poddingue
                                    last edited by

                                    @poddingue httpInactivityTimeout changed the only thing for me, I received the email half an hour later that the metadata could not be saved.

                                    1 Reply Last reply Reply Quote 0
                                    • marcoiM Offline
                                      marcoi
                                      last edited by

                                      looks like im getting the xo config backup body timeout error as well.
                                      Xen Orchestra, commit a94eb
                                      Master, commit 9c6d1

                                        "result": {
    "message": "backup task failed with undefined error",
    "name": "Error",
    "stack": "Error: backup task failed with undefined error\n    at forwardResult (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/_handleBackupLog.mjs:37:25)\n    at handleBackupLog (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/_handleBackupLog.mjs:68:12)\n    at onTaskUpdate (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/xo-mixins/metadata-backups.mjs:133:13)\n    at onTaskUpdate (file:///opt/xo/xo-builds/xen-orchestra-202608030700/@xen-orchestra/mixins/Tasks.mjs:205:23)\n    at Task.onProgress [as _onProgress] (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/combineEvents.js:61:5)\n    at Task.#emit (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/index.js:157:10)\n    at Task.#end (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/index.js:168:15)\n    at Task.run (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/index.js:190:16)\n    at Jobs.runJob (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/xo-mixins/jobs/index.mjs:297:7)\n    at Jobs.runJobSequence (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/xo-mixins/jobs/index.mjs:339:7)\n    at Task.runInside (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/index.js:204:22)\n    at Task.run (/opt/xo/xo-builds/xen-orchestra-202608030700/@vates/task/index.js:188:20)\n    at Api.#callApiMethod (file:///opt/xo/xo-builds/xen-orchestra-202608030700/packages/xo-server/src/xo-mixins/api.mjs:475:18)"
  }


                                      1 Reply Last reply Reply Quote 0
                                      • J Offline
                                        JB @christopher-petzel
                                        last edited by

                                        @christopher-petzel Olá Chris!
                                        Yes, this is a local XCP-ng management network and there are no other backups simultaneous.

                                        1 Reply Last reply Reply Quote 0
                                        • J Offline
                                          JB @poddingue
                                          last edited by

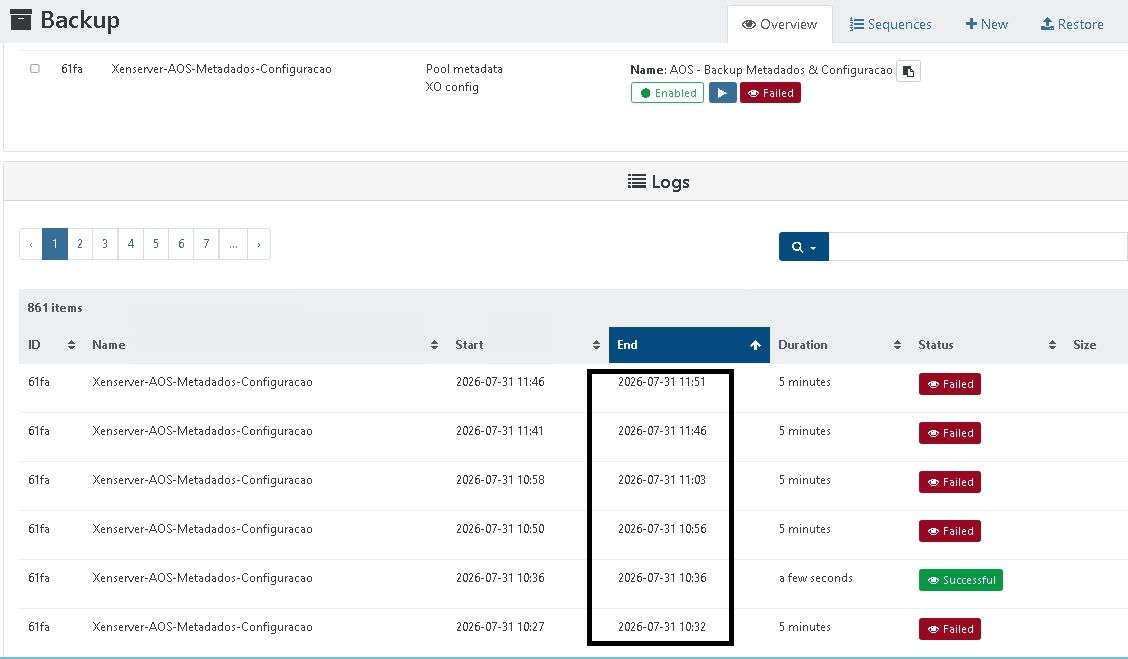

                                          @poddingue Olá! The failure has a fixed duration of 5 minutes.

                                          1 Reply Last reply Reply Quote 0
                                          • acebmxerA Offline
                                            acebmxer
                                            last edited by acebmxer

                                            Just got a failure today but with a different pool.

                                                "message": "backup task failed with undefined error",
    "name": "Error",
    "stack": "Error: backup task failed with undefined error\n    at forwardResult (file:///usr/local/lib/node_modules/xo-server/src/_handleBackupLog.mjs:37:25)\n    at handleBackupLog (file:///usr/local/lib/node_modules/xo-server/src/_handleBackupLog.mjs:68:12)\n    at onTaskUpdate (file:///usr/local/lib/node_modules/xo-server/src/xo-mixins/metadata-backups.mjs:117:13)\n    at onTaskUpdate (file:///usr/local/lib/node_modules/xo-server/node_modules/@xen-orchestra/mixins/Tasks.mjs:205:23)\n    at onLogFct (/usr/local/lib/node_modules/xo-server/node_modules/@vates/task/combineEvents.js:61:5)\n    at metadataBackup._executor (file:///usr/local/lib/node_modules/xo-server/src/xo-mixins/metadata-backups.mjs:122:11)\n    at Jobs.runJob (file:///usr/local/lib/node_modules/xo-server/src/xo-mixins/jobs/index.mjs:297:7)\n    at file:///usr/local/lib/node_modules/xo-server/src/api/schedule.mjs:84:9\n    at Task.runInside (/usr/local/lib/node_modules/xo-server/node_modules/@vates/task/index.js:204:22)\n    at Task.run (/usr/local/lib/node_modules/xo-server/node_modules/@vates/task/index.js:188:20)\n    at Xo.runSequence (file:///usr/local/lib/node_modules/xo-server/src/api/schedule.mjs:73:3)\n    at Task.runInside (/usr/local/lib/node_modules/xo-server/node_modules/@vates/task/index.js:204:22)\n    at Task.run (/usr/local/lib/node_modules/xo-server/node_modules/@vates/task/index.js:188:20)\n    at Api.#callApiMethod (file:///usr/local/lib/node_modules/xo-server/src/xo-mixins/api.mjs:475:18)"
  }
}


                                            1 Reply Last reply Reply Quote 0

                                            Hello! It looks like you're interested in this conversation, but you don't have an account yet.

                                            Getting fed up of having to scroll through the same posts each visit? When you register for an account, you'll always come back to exactly where you were before, and choose to be notified of new replies (either via email, or push notification). You'll also be able to save bookmarks and upvote posts to show your appreciation to other community members.

                                            With your input, this post could be even better 💗

                                            Register Login
                                            • First post
                                              Last post
