How to Setup IPMI in XO
-
@florent I also ran into this. It seems to be working on Dell hosts, but on my supermicro hosts I get nothing even though I do get data back from the cli plugin
[09:15 host01 ~]# xe host-call-plugin host-uuid=aa8e6bf4-6710-4320-98f9-d8e581cf8ef7 plugin=ipmitool.py fn=is_ipmi_device_available true [09:16 host01 ~]# xe host-call-plugin host-uuid=aa8e6bf4-6710-4320-98f9-d8e581cf8ef7 plugin=ipmitool.py fn=get_all_sensors [{"name": "CPU Temp", "value": "59 degrees C", "event": "ok"}, {"name": "Inlet Temp", "value": "no reading", "event": "ns"}, {"name": "PCH Temp", "value": "43 degrees C", "event": "ok"}, {"name": "System Temp", "value": "23 degrees C", "event": "ok"}, {"name": "Peripheral Temp", "value": "30 degrees C", "event": "ok"}, {"name": "CPU_VRMON Temp", "value": "39 degrees C", "event": "ok"}, {"name": "M2_SSD1 Temp", "value": "38 degrees C", "event": "ok"}, {"name": "M2_SSD2 Temp", "value": "40 degrees C", "event": "ok"}, {"name": "DIMMAB Temp", "value": "30 degrees C", "event": "ok"}, {"name": "FAN1", "value": "16240 RPM", "event": "ok"}, {"name": "FAN2", "value": "16800 RPM", "event": "ok"}, {"name": "FAN3", "value": "16380 RPM", "event": "ok"}, {"name": "FAN4", "value": "no reading", "event": "ns"}, {"name": "FAN5", "value": "no reading", "event": "ns"}, {"name": "FANA", "value": "10080 RPM", "event": "ok"}, {"name": "FANB", "value": "no reading", "event": "ns"}, {"name": "MB 12V", "value": "11.92 Volts", "event": "ok"}, {"name": "MB 5VCC", "value": "5.10 Volts", "event": "ok"}, {"name": "MB 3.3VCC", "value": "3.34 Volts", "event": "ok"}, {"name": "VBAT", "value": "0x04", "event": "ok"}, {"name": "MB 5VSB", "value": "5.06 Volts", "event": "ok"}, {"name": "MB 3.3VSB", "value": "3.34 Volts", "event": "ok"}, {"name": "PCH 1.8V", "value": "1.82 Volts", "event": "ok"}, {"name": "CPU 1.8V_AUX", "value": "1.79 Volts", "event": "ok"}, {"name": "PCH 1.05V", "value": "1.05 Volts", "event": "ok"}, {"name": "BMC 2.5V", "value": "2.50 Volts", "event": "ok"}, {"name": "BMC 1.8V", "value": "1.81 Volts", "event": "ok"}, {"name": "CPU 1.1V_DDR", "value": "1.11 Volts", "event": "ok"}, {"name": "CPU Core", "value": "1.34 Volts", "event": "ok"}, {"name": "BMC 3.3VSB", "value": "3.34 Volts", "event": "ok"}, {"name": "CPU 1.05V", "value": "1.05 Volts", "event": "ok"}, {"name": "CPU 1.8V", "value": "1.82 Volts", "event": "ok"}, {"name": "Chassis Intru", "value": "0x00", "event": "ok"}, {"name": "PS1 Status", "value": "0x01", "event": "ok"}, {"name": "AOC_NIC1 Temp", "value": "63 degrees C", "event": "ok"}, {"name": "PS2 Status", "value": "0x01", "event": "ok"}] -
curious how does this work, dont you need to put in a username and password/IP address for ipmi details. I havent looked at docs or tried this out, just wondering. I think on ESXI i had to setup the ipmi with such details before i could issue power on etc.
-
@marcoi said in How to Setup IPMI in XO:
curious how does this work, dont you need to put in a username and password/IP address for ipmi details. I havent looked at docs or tried this out, just wondering. I think on ESXI i had to setup the ipmi with such details before i could issue power on etc.
I am also curious, since I asume authentication would be required before you're allowed to read or write data from iDRAC, we have a read-only "statsuser" to poll from iDRAC with Observium.
But maybe there is some kind of "special" integrated pass-through authentication done since the ipmitool is being executed from the same host.
-
Indeed, there's no login, we just call ipmitool from the Dom0. I'm not aware of any write access from there.
-
@marcoi on xo side we use to show the ip of the ipmi and the sensor. We don't write anything nor use it for poweroff
-
Cool, thnx for the info!
-
So to understand it...
To get IPMI info from Supermicro;
Can the Host access the IPMI internally, or does it need to talk to it by the main NIC (sharing IPMI) or do I have to open FW access from the host to the dedicated IPMI interface?
In version 8.3, do I need to install any plugin, or should it work by itself? It isn't now.
-
Tested this and it worked;
[09:33 xcp-ng-01 ~]# ls /dev/ipmi* /dev/ipmi0 [09:33 xcp-ng-01 ~]# ipmitool sensor CPU Temp | 49.000 | degrees C | ok | na | 5.000 | na | na | 100.000 | na Inlet Temp | 24.000 | degrees C | ok | na | 5.000 | na | na | 50.000 | na System Temp | 27.000 | degrees C | ok | na | 5.000 | na | na | 85.000 | na Peripheral Temp | 35.000 | degrees C | ok | na | 5.000 | na | na | 85.000 | na CPU_VRM0 Temp | 41.000 | degrees C | ok | na | 5.000 | na | na | 100.000 | na CPU_VRM1 Temp | 32.000 | degrees C | ok | na | 5.000 | na | na | 100.000 | na SOC_VRM Temp | 38.000 | degrees C | ok | na | 5.000 | na | na | 100.000 | na VDDIO_VRM Temp | 31.000 | degrees C | ok | na | 5.000 | na | na | 100.000 | na DIMMA~F Temp | 37.000 | degrees C | ok | na | 5.000 | na | na | 85.000 | na DIMMG~L Temp | 38.000 | degrees C | ok | na | 5.000 | na | na | 85.000 | na MB 12V | 11.999 | Volts | ok | 10.151 | 10.319 | na | na | 13.259 | 13.427 MB 5VCC | 5.112 | Volts | ok | 4.482 | 4.482 | na | na | 5.490 | 5.490 MB 3.3VCC | 3.229 | Volts | ok | 2.952 | 2.952 | na -
Just to add more data.
Xen Orchestra, commit 56b17
Master, commit 56b17

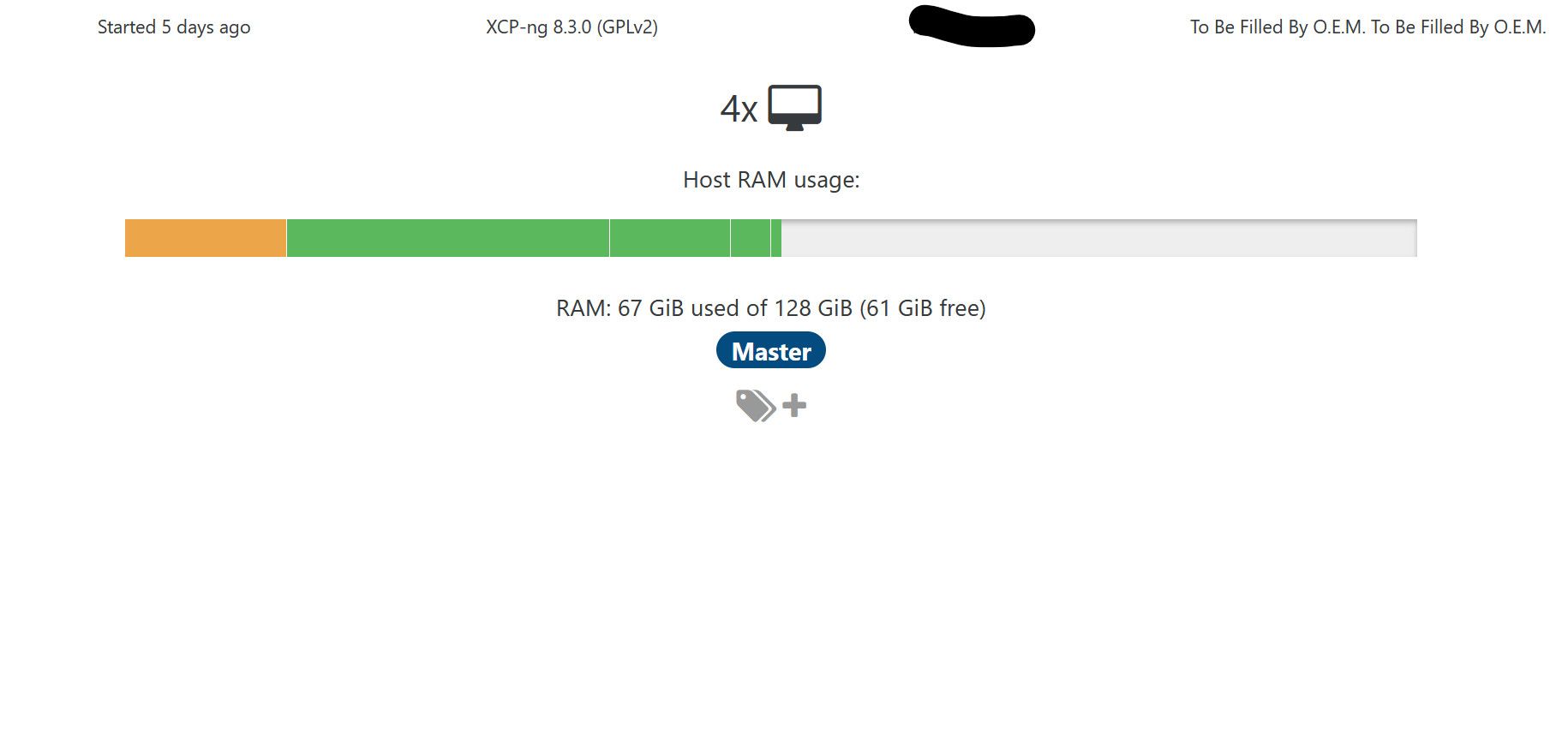

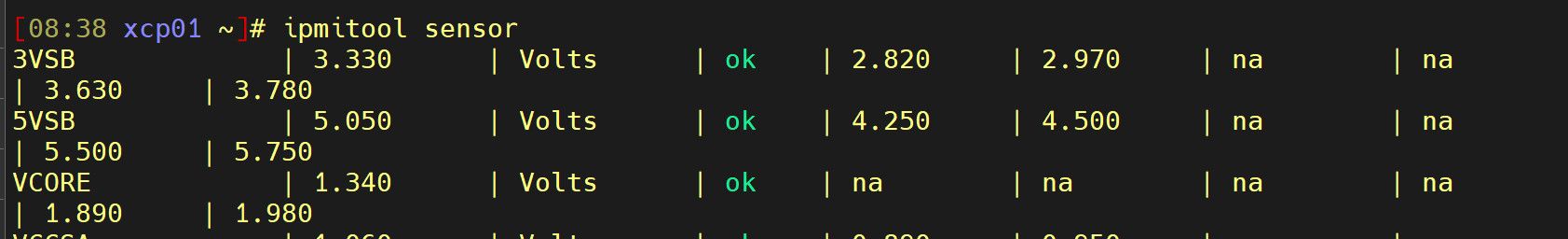

All patches on host are done.the ipmitool works on my asrock MB but i dont see it in XO host screen.
I also didnt see it on xo6 interface.
-
Hi,
Each vendor got a different way to display their IPMI stats, so it needs a specific code in XO to display it. Sadly, it's not universal. There's no Asrock support yet.
-
